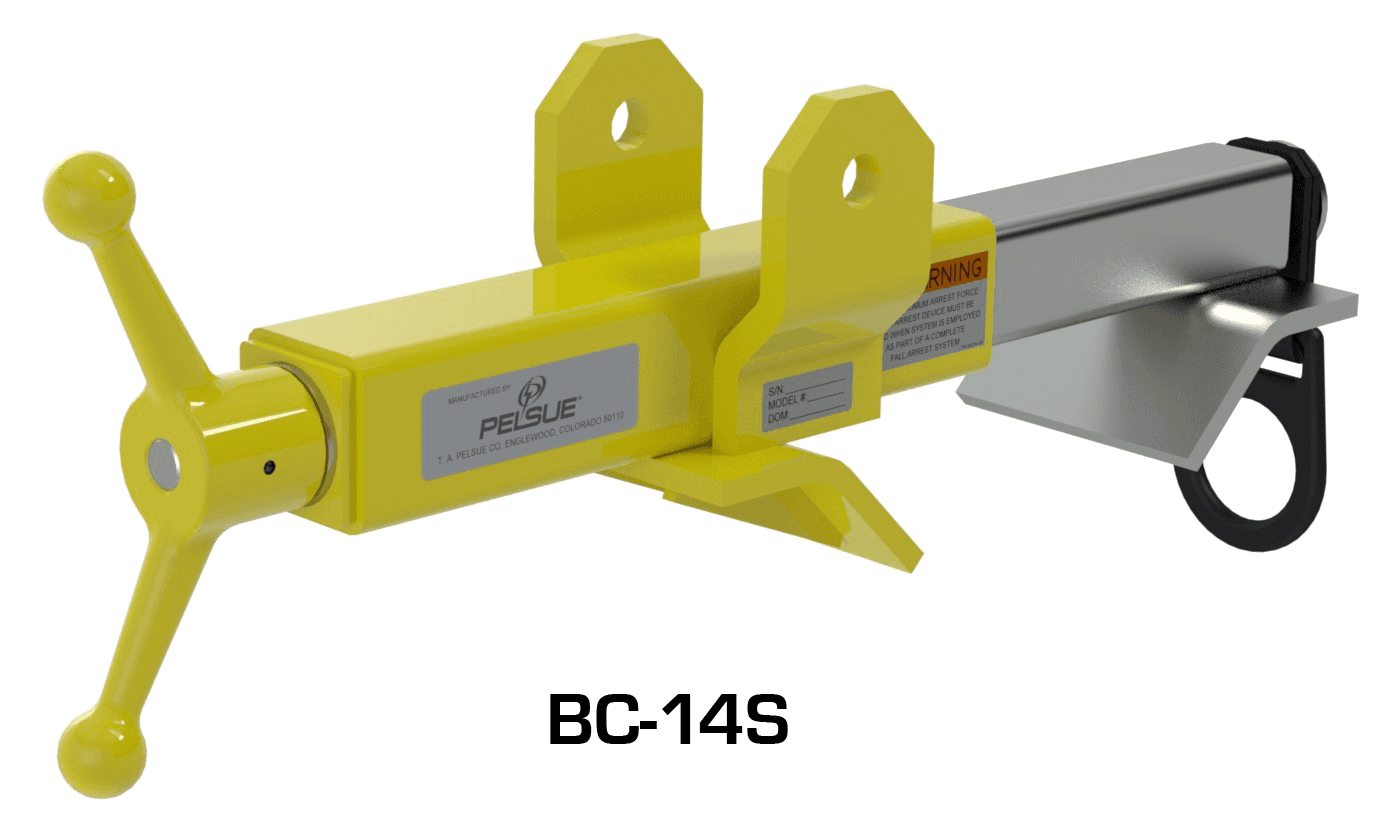

BC-14S – Adjustable Beam Clamp Base, 4″-14″ for I-Beam

The Adjustable Beam Clamp Base, 4″ – 14″ for I-Beam is built from carbon steel and has steel hardware. The BC-14S Adjustable Beam Clamp Base is specifically designed to provide a portable mounting base for a fall arrest post. The #BC-14S is also equipped with a swivel D-Ring that provides a compliant anchorage for a fall arrest system when not used in conjunction with a fall arrest post. All specifications provided are based upon and only valid for usage with a Pelsue Uni-Lite Fall Arrest Post. Pelsue cannot verify equipment safety and/or compliance when utilized with any other system.

The BC-14S is designed and tested to be used in 2 General Applications:

• As a portable Fall Arrest Anchorage Point: Man Rated Load Capacity @ Anchor D-Ring - Single user of 350 lbs. (159 kg.) Maximum Weight

• As a portable Fall Arrest Post mounting base: Man Rated Load Capacity Using Fall Arrest Post - Rating is determined by fall arrest post.

Warning! A 900 LB. maximum arrest force (MAF) fall arrest device must be used when system is employed as part of a complete fall arrest system. Maximum weight of person upon anchorage is 350 lbs. (159 kg.) inclusive of all tools and equipment

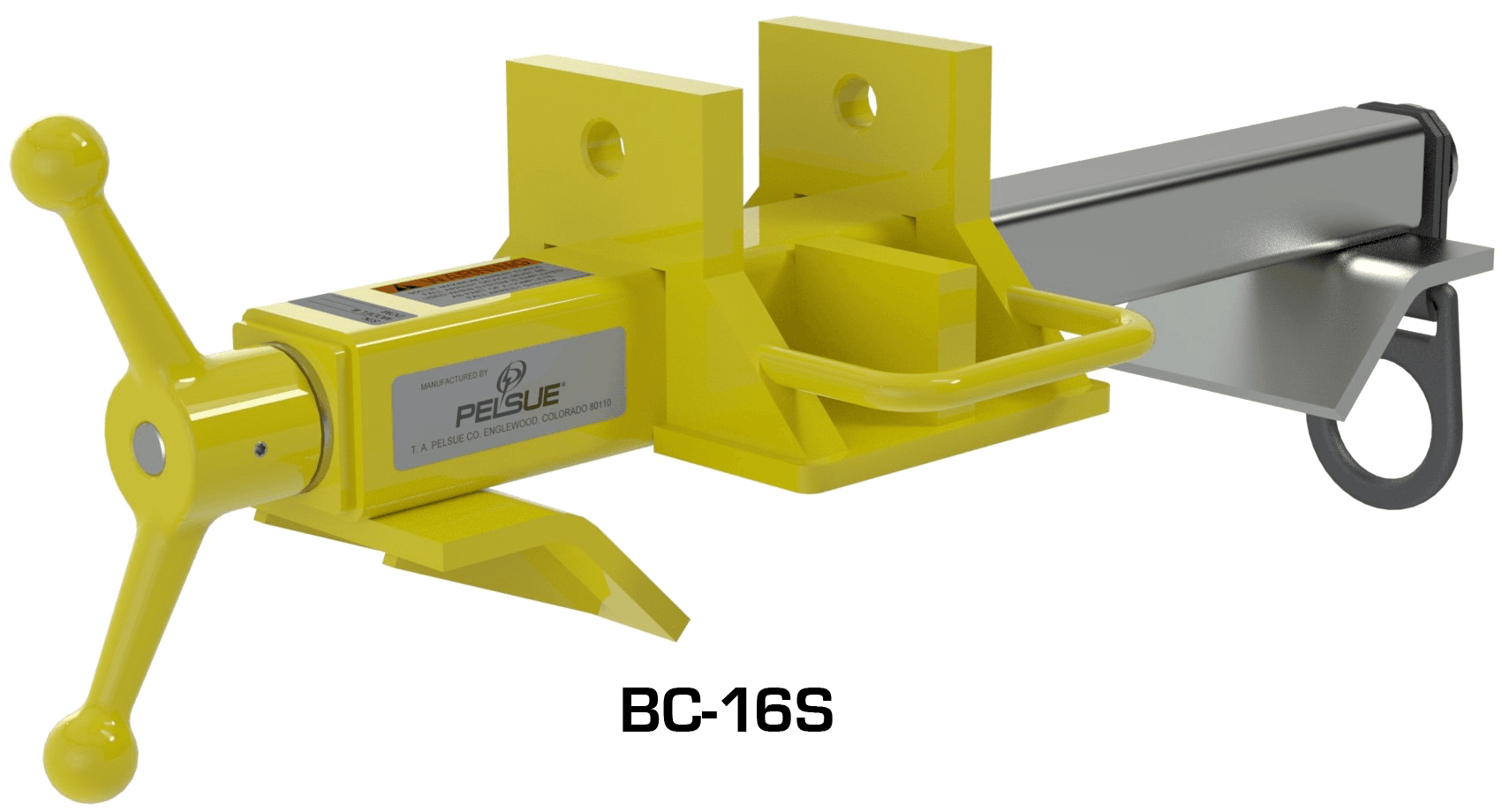

BC-16S – Adjustable Beam Clamp Base, 8.75″-16″ for I-Beam

The Pelsue Model BC-16S Structural Beam Clamp is specifically designed to provide a portable mounting point for the Pelsue Uni-Lite Fall Arrest and Expandable Fall Arrest Posts. The telescoping tube sections are able to be extended, via the speed handle, allowing for two, angled jaw plates to grip underneath the flange of the structure thereby anchoring the clamp to the structure. The Model BC-16S will anchor to structures having an outside flange width between 8-3/4” & 16” and a flange thickness of up to 1”. The BC-16S is also equipped with a swivel D-Ring that provides a compliant anchorage for a fall arrest system when the clamp is not used in conjunction with a fall arrest post. The Model BC-16S is constructed of steel and is coated with a durable electroless nickel plated finish.

The BC-16S is designed and tested to be used in 2 General Applications:

• As a portable Fall Arrest Anchorage Point: Man Rated Load Capacity @ Anchor D-Ring - Single User of 310 lbs. (141 kg.) Maximum Weight

• As a portable mounting base for the Pelsue Uni-Lite Fall Arrest and Expandable Fall Arrest Posts when both products are employed and utilized according to their respective Product Manuals: Man Rated Load Capacity Using Fall Arrest Post - Rating is determined by fall arrest tower.

Warning! A 900 LB. maximum arrest force (MAF) fall arrest device must be used when system is employed as part of a complete fall arrest system. Maximum weight of person upon anchorage is 310 lbs. (141 kg.) inclusive of all tools and equipment
