Overview

LIGHTWEIGHT

TWO HOIST/SRL MOUNTING LOCATIONS

EASY SET-UP

The Pelsue Davit System is extremely versatile and can be used for both fall protection and rescue & retrieval. The system includes a universal bracket for the mounting of a hoist, standard SRL, or 3-Way SRL, and offers an additional mounting location for using two systems.

All Pelsue Davit Systems are built from structural aluminum, allowing for lightweight and portable use. They are also specially engineered to be fully set up in about 5 minutes. The Pelsue Davit System is proudly made in America with the highest quality materials to ensure the system will provide you years of service.

Every Davit system includes 1 hoist bracket & mounting plate for use with a standard retrieval hoist. No hoist included.

All Pelsue Davit Systems are man rated to 310 lbs.

Compatible Mount Sleeves & Bases

Permanent Mount Sleeves:

DSP-F1 – Floor Mounted: Coated Steel

DSS-F1 – Floor Mounted: Stainless SteelDSG-F1 – Floor Mounted: Galvanized Steel

DSP-F2 – Center Floor Mounted: Coated Steel

DSS-F2 – Center Floor Mounted: Stainless Steel

DSG-F2 – Center Floor Mounted: Galvanized Steel

DSP-W1 – Wall Mounted: Coated Steel

DSS-W1 – Wall Mounted: Stainless Steel

DSG-W1 – Wall Mounted: Galvanized Steel

DSP-A1 – Inside Corner Mounted: Coated Steel

DSP-A2 – Outside Corner Mounted: Coated Steel

DSP-C2 – Cylinder Core: Coated Steel

DSS-C2 – Cylinder Core: Stainless Steel

DSP-C1 – Flush Floor Mounted (Fresh Pour Concrete): Coated Steel

DSS-C1 – Flush Floor Mounted (Fresh Pour Concrete): Stainless Steel

DSP-F3 – Flush Floor Mounted (Existing Concrete): Coated Steel

DSS-F3 – Flush Floor Mounted (Existing Concrete): Stainless Steel

Portable Wall Mounted Bases

DSR-S03 – Portable Wall Mount: Zinc Plated Carbon Steel

DSR-A08 – Clamping Portable Wall Mount: Yellow Powder Coated

DSR-ADJ – Adjustable Wall Mount: Yellow Powder Coated

Sleeve Caps

DSC-S2 – Sleeve Cap – Powder Coated Steel

DSC-S1 – Sleeve Cap – Stainless Steel

DSC-P1 – Sleeve Cap – Plastic 0

Specifications

Complete Arms	Description	Weight
DK1824	Davit Mast, includes center post (CP60), elbow (EM01), and 18"/24" offset arm (BA24) (Base and hoist sold separately)	45 lbs.
DK3036	Davit Mast, includes center post (CP60), elbow (EM01), and 30"/36" offset arm (BA36) (Base and hoist sold separately)	48 lbs.
DK4248	Davit Mast, includes center post (CP60), elbow (EM01), and 42"/48" offset arm (BA48) (Base and hoist sold separately)	51 lbs.

Individual Parts	Description	Weight
BA24	Offset Arm, aluminum, with pulley & U-bracket, 18"/24" offset reach	7 lbs.

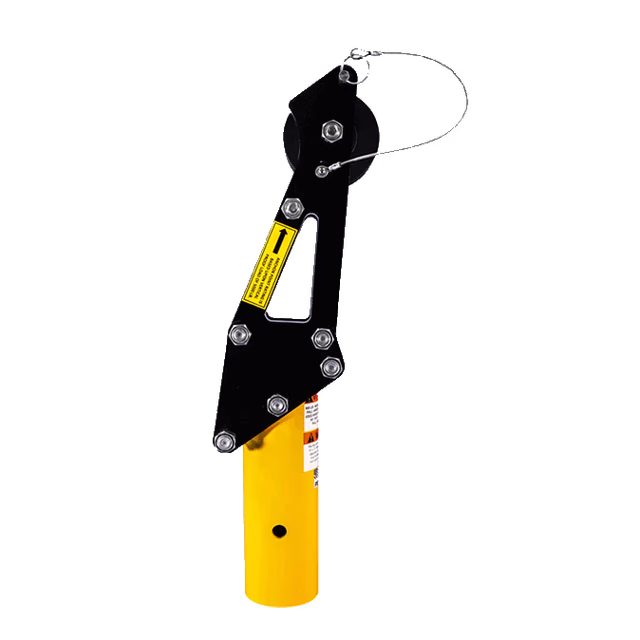

BA36	Offset Arm, aluminum, with pulley & U-bracket, 30"/36" offset reach	10 lbs.
BA48	Offset Arm, aluminum, with pulley & U0-bracket, 42"/48" offset reach	12 lbs.
EM01	Elbow, fabricated aluminum, reversible for different offset lengths	13 lbs.
CP60	Center post with hoist mounting bracket, aluminum, 60" H	26 lbs.
CPX-15	Center post extension, powder coated steel, 15"	22 lbs.
CPX-24	Center post extension, powder coated steel, 24"	25 lbs.
CPX-36	Center post extension, powder coated steel, 36"	31 lbs.

Mount Sleeves	Description	Weight
DSP-F2	Coated steel, center floor mount - can anchor to surfaces such as floors, truck beds, catwalks, etc.	24 lbs.
DSS-F2	Stainless steel, center floor mount - can anchor to surfaces such as floors, truck beds, catwalks, etc.	24 lbs.
DSP-F1	Coated steel, floor mount - can anchor to surfaces such as floors, truck beds, catwalks, etc.	24 lbs.
DSS-F1	Stainless steel, floor mount - can anchor to surfaces such as floors, truck beds, catwalks, etc.	24 lbs.
DSP-W1	Coated steel - wall mounted. Can anchor to truck bumpers, tank walls, sides of catwalks, meter pits, clarifier's, etc.	22 lbs.

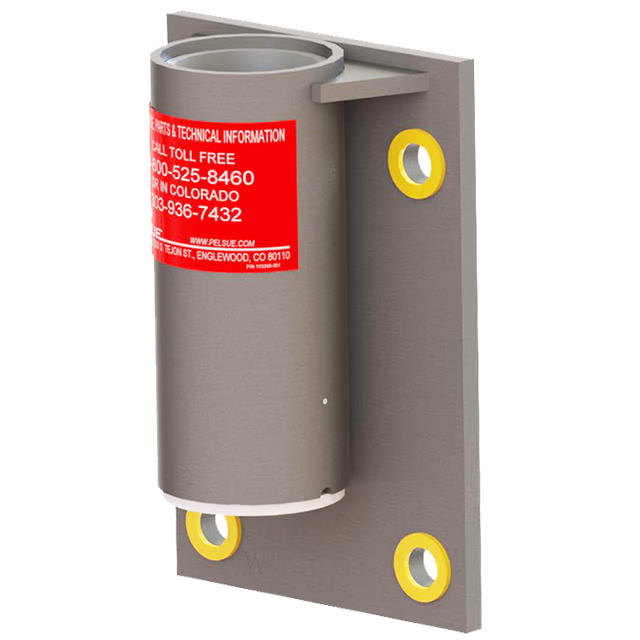

DSS-W1	Stainless steel - wall mounted. Can anchor to truck bumpers, tank walls, sides of catwalks, meter pits, clarifier's, etc.	22 lbs.
DSP-A1	Coated steel - inside 90° angle. The corner mount is anchored by bolts to reinforced truck bumpers, walls, etc.	26 lbs.
DSP-A2	Coated steel - outside 90° angle. The corner mount is anchored by bolts to reinforced truck bumpers, walls, etc.	26 lbs.
DSP-C2	Coated steel - cylinder core mount is drilled into existing concrete or poured into fresh concrete. Must be secured to the concrete with grout or epoxy compatible with plant conditions.	9 lbs.

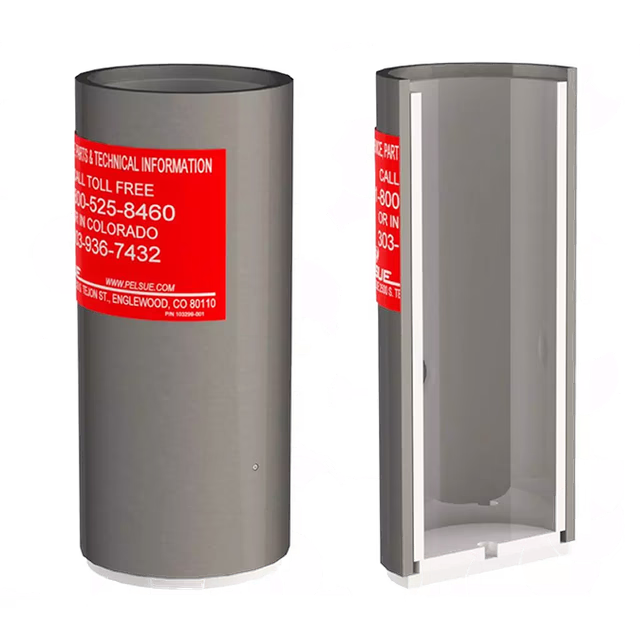

DSS-C2	Stainless steel - cylinder core mount is drilled into existing concrete or poured into fresh concrete. Must be secured to the concrete with grout or epoxy compatible with plant conditions.	9 lbs.
DSP-C1	Coated steel - placed in fresh concrete, this sleeve mounts flush with the floor and is great for high traffic areas where trip hazards are a concern.	21 lbs.

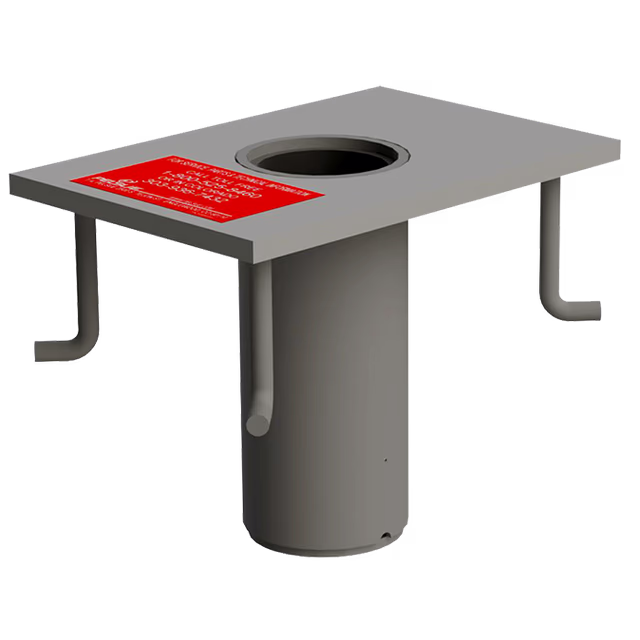

DSS-C1	Stainless steel - placed in fresh concrete, this sleeve mounts flush with the floor and is great for high traffic areas where trip hazards are a concern.	21 lbs.
DSP-F3	Coated steel - the existing concrete flush floor mount is drilled and bolted in concrete or welded or bolted in steel. Great for high traffic areas where trip hazards are a concern.	23 lbs.

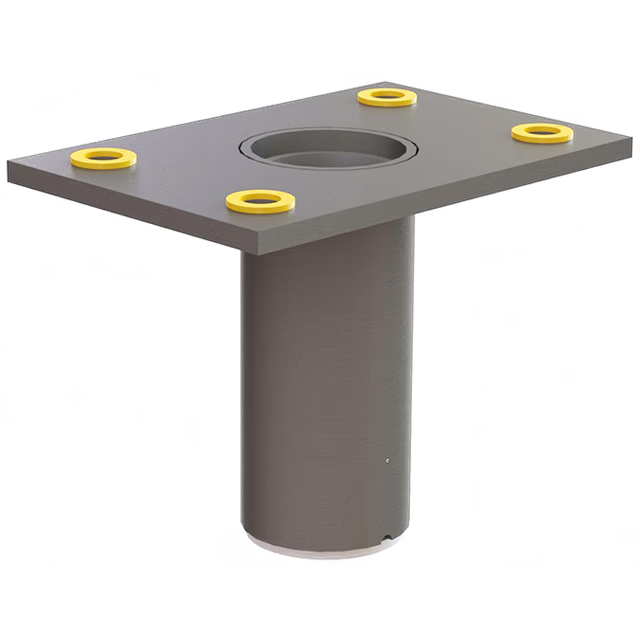

DSS-F3	Stainless steel - the existing concrete flush floor mount is drilled and bolted in concrete or welded or bolted in steel. Great for high traffic areas where trip hazards are a concern.	23 lbs.

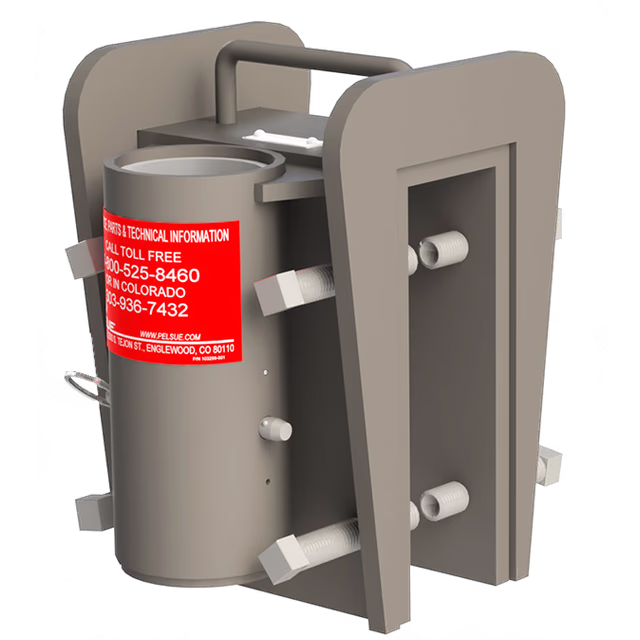

DSR-S03	Portable Wall Mounted Base - zinc plated carbon steel. Clamping via 8 bolts, the wall mount straddles walls of tanks, caissons, shorings, etc. up to 3" thick.	58 lbs.
DSR-A08	Clamping Portable Wall Mounted Base - yellow powder coated. For clamping onto a wall ranging from 3" to 8" thick walls.	35 lbs.
DSR-ADJ	Adjustable Wall Mounted Base - yellow powder coated. The adjustable wall mount can clamp to any wall ranging from 1" - 23.25" thick.	55 lbs.
DSC-S2	Sleeve accessory - zinc plated steel sleeve cap. Used to seal sleeves when not in use. Has a rubber seal that expands into sleeve.	1 lb.
DSC-S1	Sleeve accessory - stainless steel sleeve cap. Used to seal sleeves when not in use. Has a rubber seal that expands into sleeve.	1 lb.
DSC-P1	Sleeve accessory - ABS plastic sleeve cap. Used to seal sleeves when not in use. Has a rubber seal that expands into sleeve.	0.24 lbs.
