Anchor Clamp

Anchor Clamp

Choose Model:

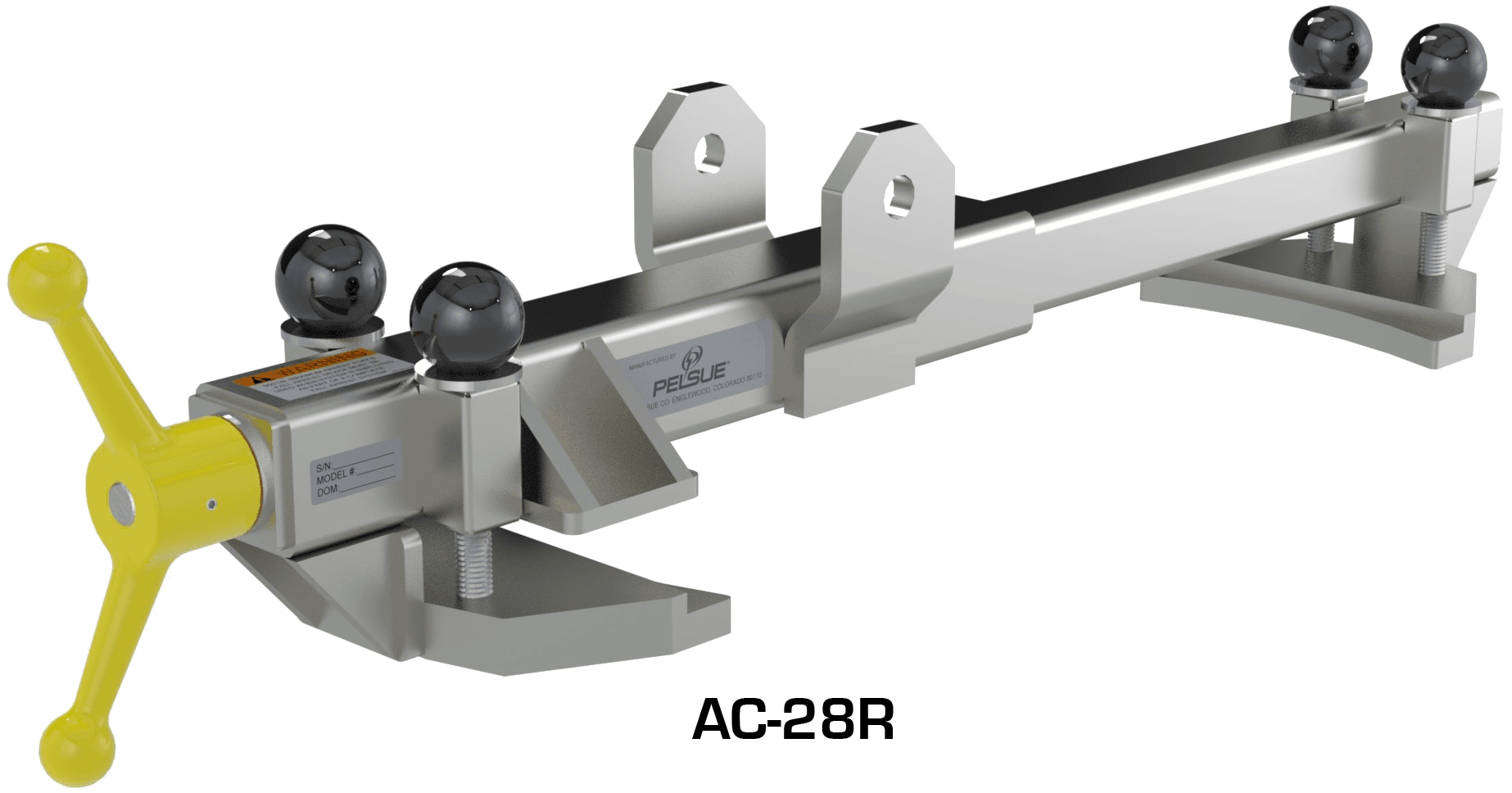

AC-28R – Anchor Clamp – 16″-28″

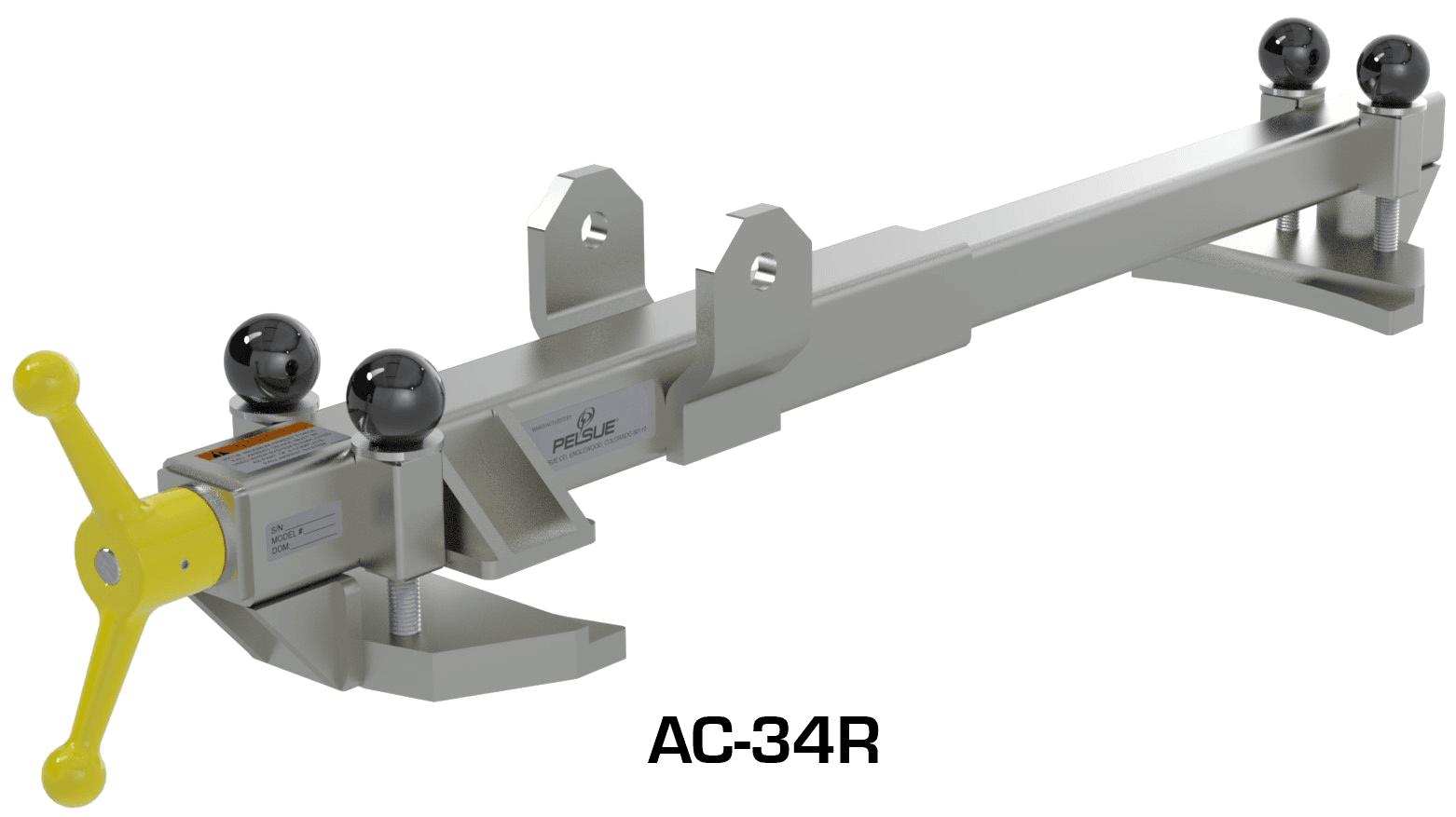

AC-34R – Anchor Clamp – 19″-34″

Quantity:

1

Overview

The Pelsue Anchor Clamp is specifically designed to provide a portable mounting point for the Pelsue Uni-Lite Fall Arrest Post. The telescoping tube sections are able to be extended, via the speed handle, allowing two, rounded jaw plates to be placed underneath the flange of the manway thereby anchoring the clamp to the structure. The grip of the jaw plates is adjustable in order to account for varying thicknesses of the manway flange. The clamp will anchor to round manways and a flange thickness of up to 1-1/4”. The Anchor Clamp is constructed of steel and is coated with a durable electroless nickel plated finish.

  • The Pelsue Anchor Clamp as a portable mounting base for Pelsue Uni-Lite Fall Arrest Pos when both products are employed and utilized according to their respective Product Manuals.

  • Man Rated Load Capacity Using Fall Arrest Post: Rating is determined by fall arrest post. Warning! A 900 LB. maximum arrest force (MAF) fall arrest device must be used when system is employed as part of a complete fall arrest system. Maximum weight of person upon anchorage is 310 lbs. (141 kg.) inclusive of all tools and equipment.

Warning! A 900 LB. maximum arrest force (MAF) fall arrest device must be used when system is employed as part of a complete fall arrest system. Maximum weight of person upon anchorage is 310 lbs. (141 kg.) inclusive of all tools and equipment

Features:

  • Portable Fall Arrest Post Base for installation on manways

  • Telescoping tube sections and adjustable plates allow maximum adjustment

  • Provides an approved mounting base for the Pelsue Uni-Lite Fall Arrest Post
