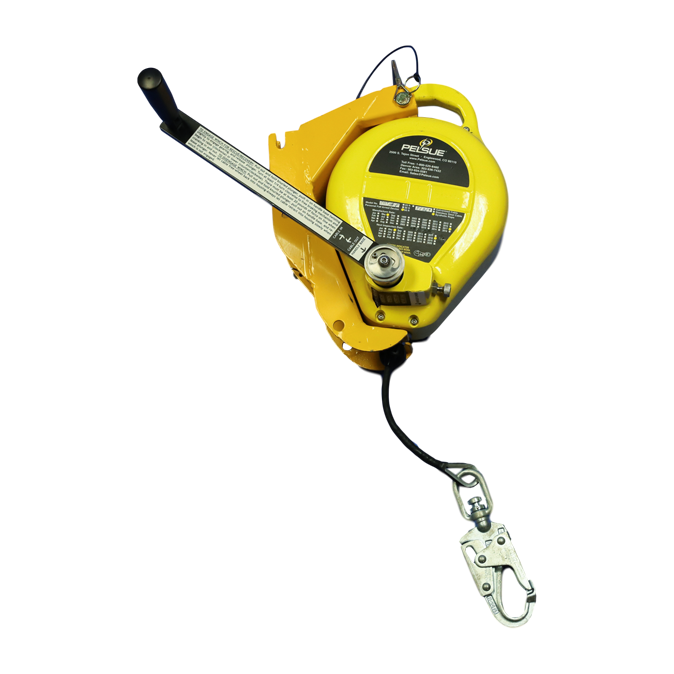

3-Way Self-Retracting Lifelines
One device, three functions: fall arrest, descent, and emergency rescue retrieval. The PSRL1350 locks on a fall within 2 feet, then activates into winch mode to raise or lower a worker to safety. Required for confined space entry on ladder, fixed structure, or mechanical lowering. OSHA & ANSI Compliant. 310 lb Rated. 50′ Length
Fall Arrest: Locks within 2 feet of fall initiation
Descent: Controlled worker lowering
Rescue Retrieval: Winch mode — emergency only
All Models
All hoists share the following specifications:
2 ft Max Fall Arrest Distance
50′ Lifeline Length
3 yr Re-Certification Interval
Three Functions.
One Device.
A standard SRL arrests a fall and that's it. The 3-Way SRL does that — and when the situation demands it, it also lowers a worker to safety or enables emergency retrieval via winch mode. For confined space entry on a ladder, fixed structure, or while being mechanically lowered, OSHA requires an independent lifeline. The 3-Way satisfies that requirement while adding retrieval capability that a standard SRL cannot provide.
Before You Deploy
Hitch Mode is Emergency Only
The raising and lowering function of the 3-Way SRL is for emergency rescue only. It must not be used for routine daily raising and lowering of workers. For everyday personnel entry and retrieval, use the Personnel Hoists.
Re-Certification & Fall Replacement
The 3-Way SRL requires re-certification every 3 years. If the unit has been used in a fall arrest event — even if it appears undamaged — it must be replaced immediately before being returned to service. The stress indicator helps identify prior fall use.
Accessories
BGW3 - SRL & Hoist Bag
Carrying case which fits all hoists and SRLs
MB-FST - Adapter Bracket
Adapter bracket for compatible anchor system mounting. Included in -SST and -TRT models.
MB-FSB - Adapter Bracket
Adapter bracket for compatible anchor system mounting. Included in -SSB and -TRB models.
