Davit Systems

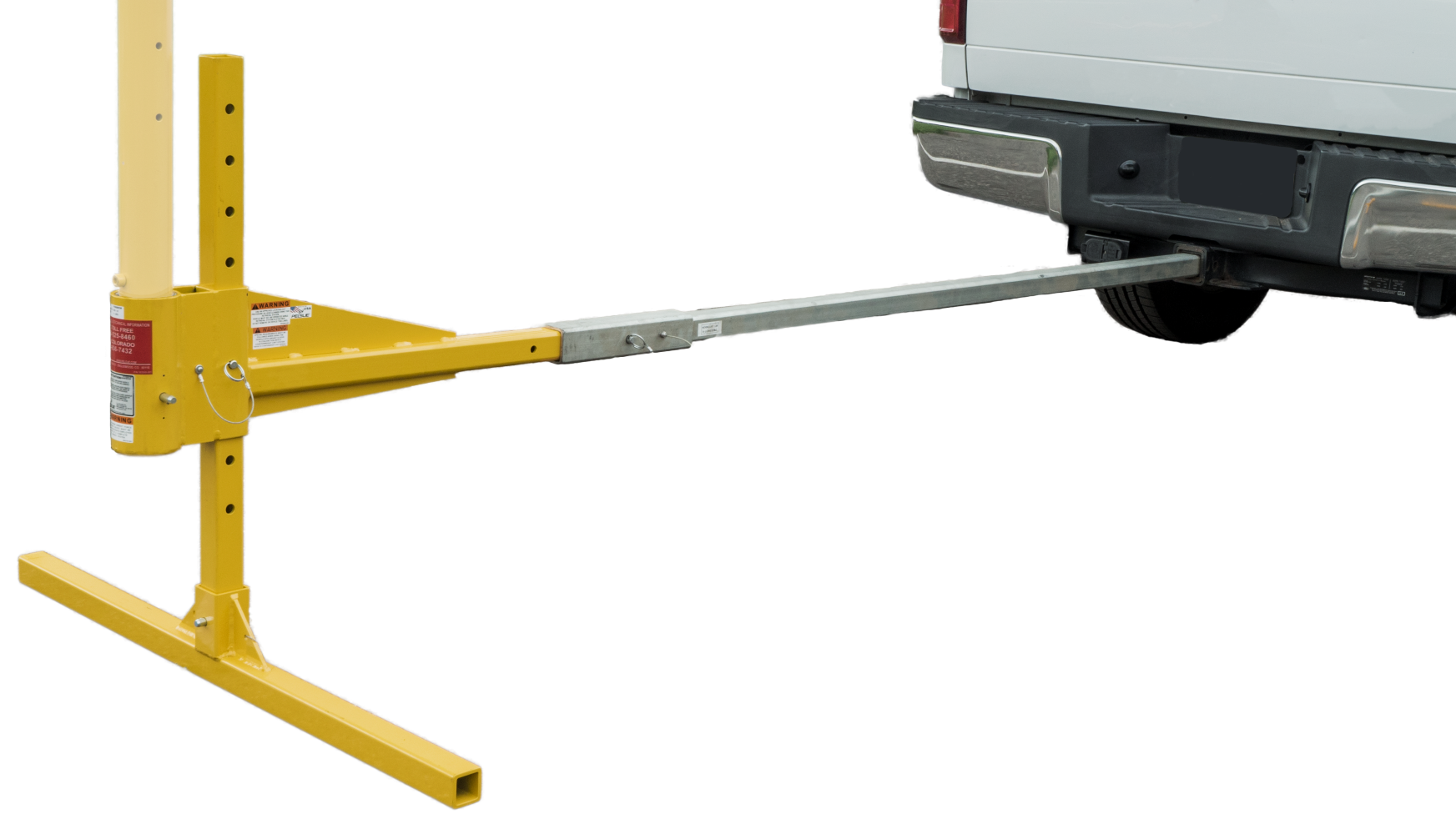

Vehicle Hitch Mount Davit System

Your vehicle becomes the anchor. The RK-HS1 connects to any standard 2" square hitch receiver, letting you drive right up to the confined space entry point — no separate base, no staging, no delay. Man-rated to 310 lbs., set up in approximately 5 minutes. Hoists sold separately. OSHA Compliant. ANSI Certified. Made in USA.

310 lb Capacity

~5 Setup

Kit Weight 93 lbs.

2" Square Hitch Size

Connects directly to any standard 2" square vehicle hitch receiver

Reach difficult access points — position the vehicle, not the base

Includes multi-directional HSJ2 receiver for flexible positioning

Works for fall protection and rescue & retrieval in one configuration

Man-rated to 310 lbs. — meets OSHA & ANSI confined space standards

RK-HS1 — Complete Kit

VHS-A1 — Vehicle hitch mount base · 48 lbs.
DK1824 — Davit mast with CP60 center post, EM01 elbow, BA24 18"/24" arm · 45 lbs.
HSJ2 — Multi-directional vehicle hitch receptacle, plated steel · 9 lbs.
MB-PF1 — Standard hoist mount bracket included
Total kit weight: 93 lbs.
Hoist sold separately for all kits

Vehicle Hitch Components

VHS-A1 — Hitch mount base, connects to 2" square receiver · 48 lbs.
HSJ2 — Multi-directional receptacle attachment, plated steel · 9 lbs.
HSX2 — 2′ extension bar, plated steel · 31 lbs.
HSX4 — 4′ extension bar, plated steel · 33 lbs.
HSX6 — 6′ extension bar, plated steel · 35 lbs.

Davit Arm Components

CP60 — Center post, aluminum, 60" H with hoist bracket · 26 lbs.
EM01 — Elbow, fabricated aluminum, reversible · 13 lbs.
BA24 — Offset arm, 18"/24" reach, pulley & U-bracket · 7 lbs.
CPX-15/24/36 — Center post extensions: 15", 24", 36"

Bases

EB56 — Adjustable 36"–56" inside width, 18" max offset · 100 lbs.
EB66 — Adjustable 46"–66" inside width, 24" max offset · 115 lbs.
DBF-43A — Folding aluminum, 48"W × 36" deep, 18" max offset · 35 lbs.

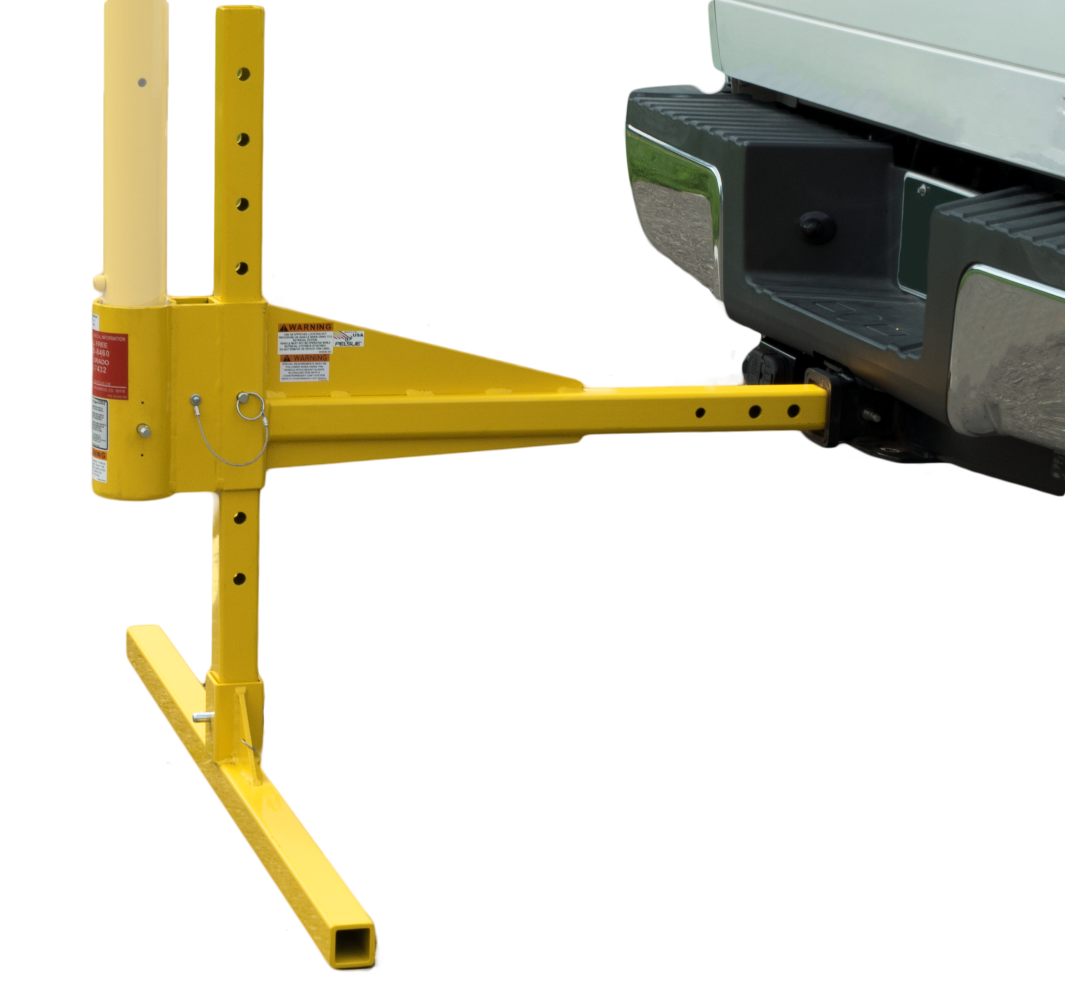

VHS-A1 - Vehicle Hitch Mount Base

Connects to standard 2" square hitch receiver. 48 lbs.

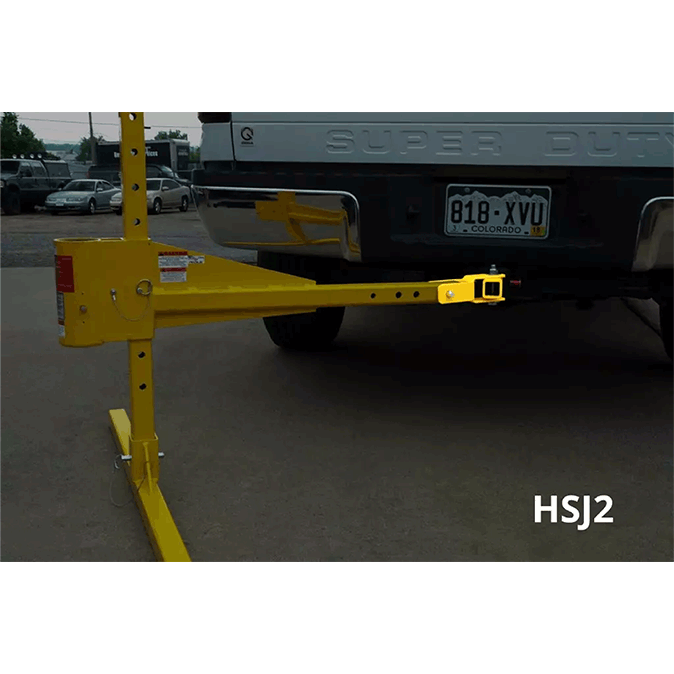

HSJ2 - Multi-Directional Receiver

Vehicle hitch receptacle attachment, plated steel. 9 lbs.

HSX2 - 2′ Extension Bar

2’ extension bar for vehicle mount, plated steel

HSX4 - 4′ Extension Bar

4’ extension bar for vehicle mount, plated steel

HSX6 - 6′ Extension Bar

6’ extension bar for vehicle mount, plated steel

CP60 - Davit Center Post

Aluminum, 60"H with hoist mounting bracket. 26 lbs.

EM01 - Davit Elbow

Fabricated aluminum, reversible for different offset lengths. 13 lbs.

BA24 - Offset Arm 18"/24"

Aluminum with pulley & U-bracket. 18"/24" reach. 7 lbs.

Personnel Hoists

View Product

Equipment Hoists

View Product

Quick Rescue Hoists

View Product

Standard Self-Retracting Lifelines

View Product

3-Way Self-Retracting Lifelines

View Product

MB-FSB Bracket

Bracket to attach all SRLs to MB-PF1 quick-connect bracket

BGW3 - SRL & Hoist Bag

Carrying case which fits all hoists and SRLs

Fast Response

Our safety specialists typically respond within one business day.

Technical Expertise

Ask us anything — confined space configurations, compatible hoists and SRLs.

Distributor Referral

We'll match you with an authorized Pelsue distributor in your region who can fulfill your order.

Prefer to Call?

303.936.7432 · Mon–Fri, 8am–5pm MT

Vehicle Hitch Mount Davit System

310 lb Capacity

~5 Setup

Kit Weight 93 lbs.

2" Square Hitch Size

One Model

RK-HS1
Vehicle hitch mount · DK1824 davit mast · 18"/24" offset reach · multi-directional receiver (HSJ2) · hoist sold separately

Your Vehicle is the Base.
