Industrial Safety

Davit Systems

Which Davit Base Do You Need?

Three base configurations — portable, permanent, and vehicle hitch — for confined space retrieval and fall protection wherever your crew works. All structural aluminum. All man-rated. All made in the USA.

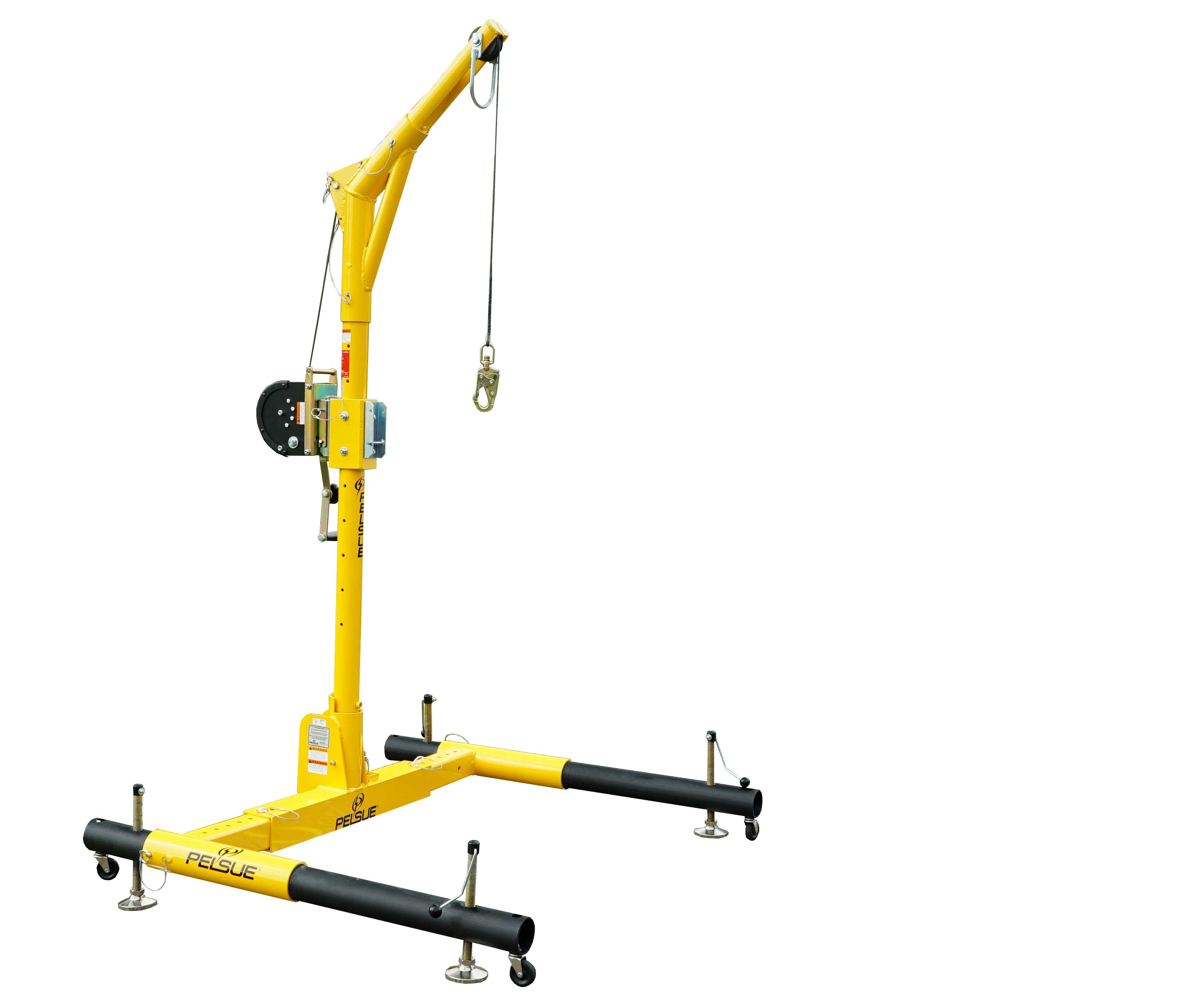

Davit

Portable Base


Expandable legs with built-in jacks and bullseye level. Collapses to fit a work truck. Ideal for multi-site crews.

Portable Base
Davit

Permanent Base

Bolted, vaulted, or set in concrete. 360° pivot. Always on-site at recurring confined space access points.

Permanent Base
Pelsue_Davit_System_web

Vehicle Hitch Mount

Connects to any 2" square receiver. Drive directly to the confined space. Best for emergency response teams.

Vehicle Hitch Mount

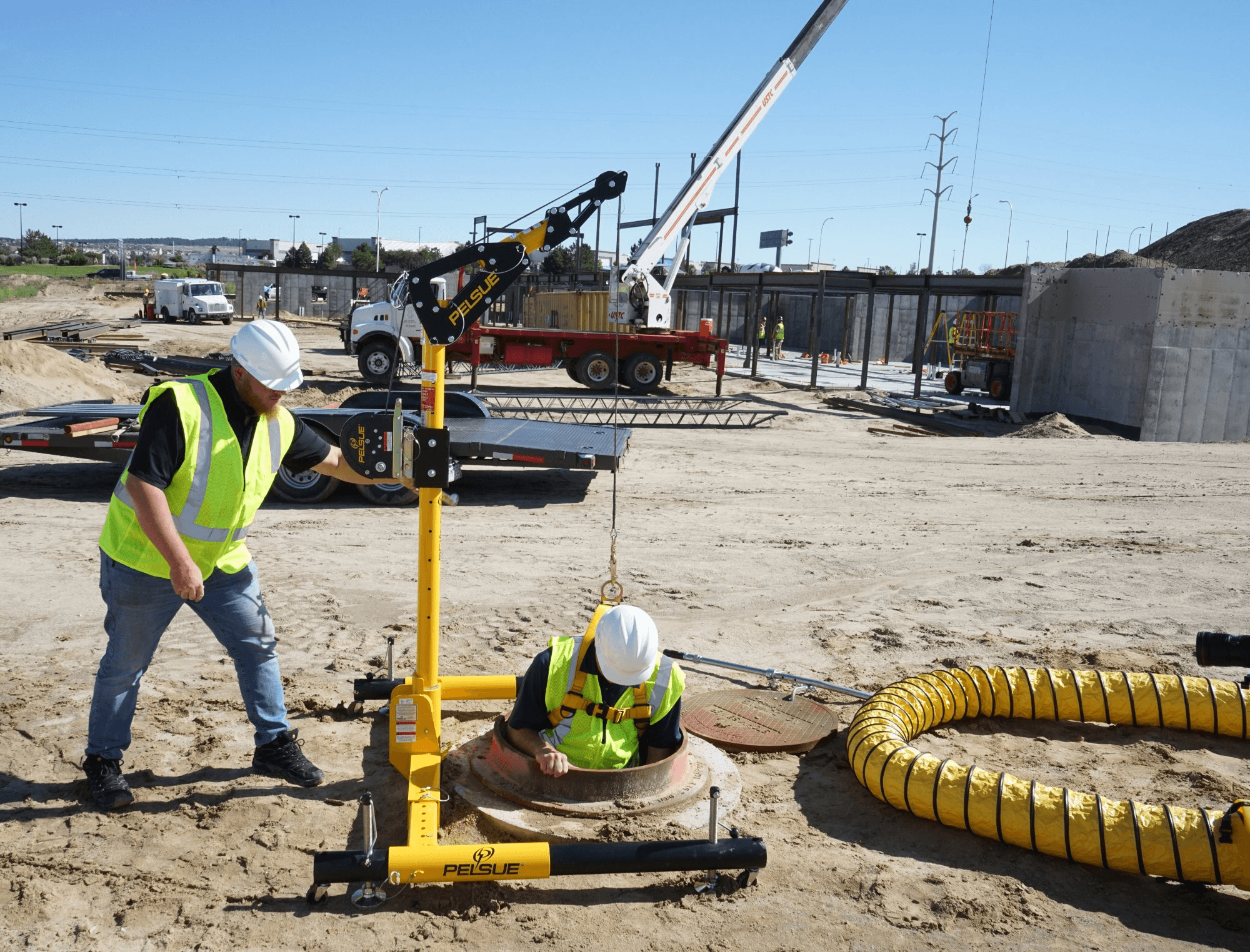

Portable Davit Fall Protection System

The most versatile Pelsue davit configuration. The expandable base includes built-in leveling jacks and a bullseye level for stable setup on uneven ground. Collapses to fit in a work truck for easy transport between sites. Compatible with the DK1824 arm (18"/24" offset). Includes one hoist bracket and mounting plate. Hoist not included.

Portable Davit Bases:

  • EB56 – Adjustable base, 36″ – 56″ inside width, 18″ maximum offset
  • EB66 – Adjustable base, 46″ – 66″ inside width, 24″ maximum offset
  • DBF-43A – Folding base, 48″ W x 36″ deep nominally, 18″ maximum offset, aluminum
View System
Portable_Davit_Fall _Protection_System

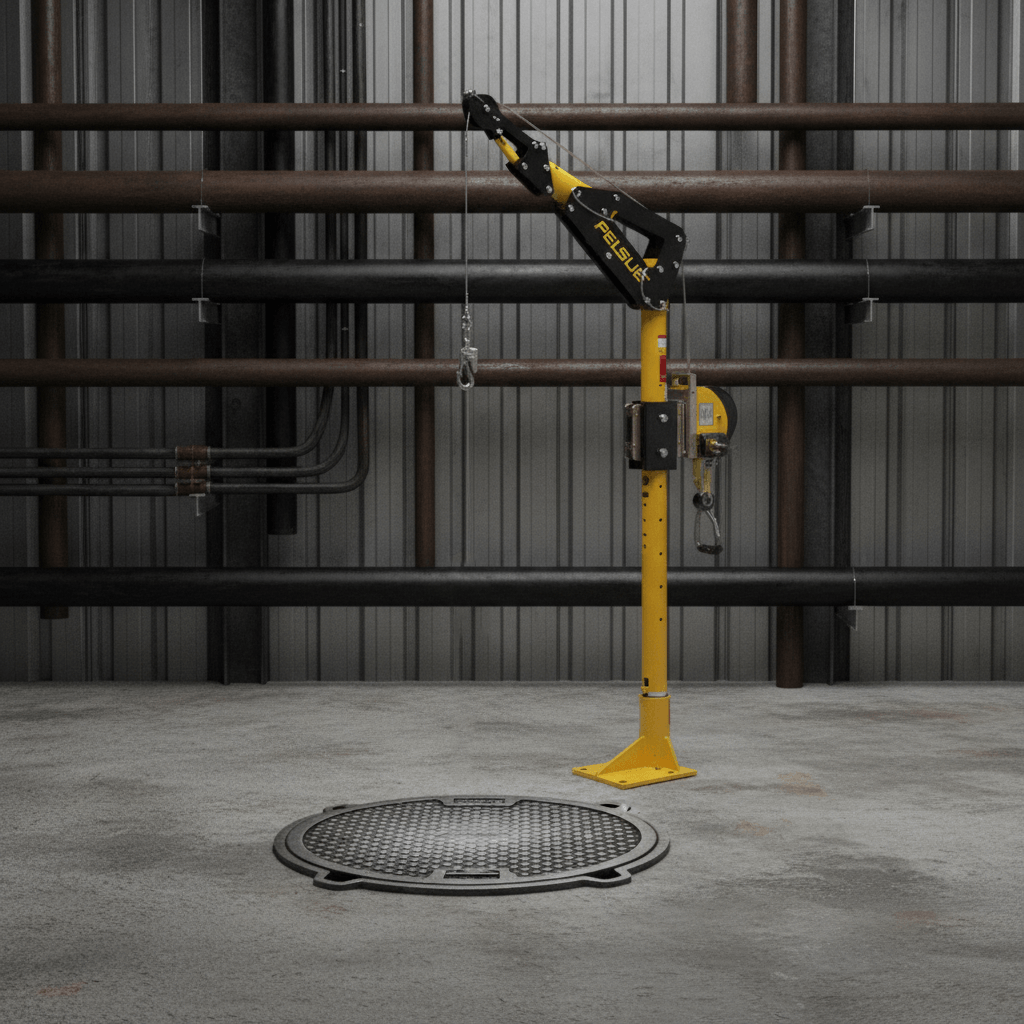

Permanent Base Davit Fall Protection System

For confined space access points that crews return to repeatedly. The permanent sleeve can be bolted to the floor, mounted to a wall, or set in fresh or existing concrete — giving you a 360° pivot, ready-to-use installation that's always on-site. The davit arm stores separately when not in use and drops into the sleeve in seconds. Compatible with DK1824, DK3036, and DK4248 arms. Includes one hoist bracket and mounting plate. Hoist not included.

View System
permanent-base-davit-fall-protection

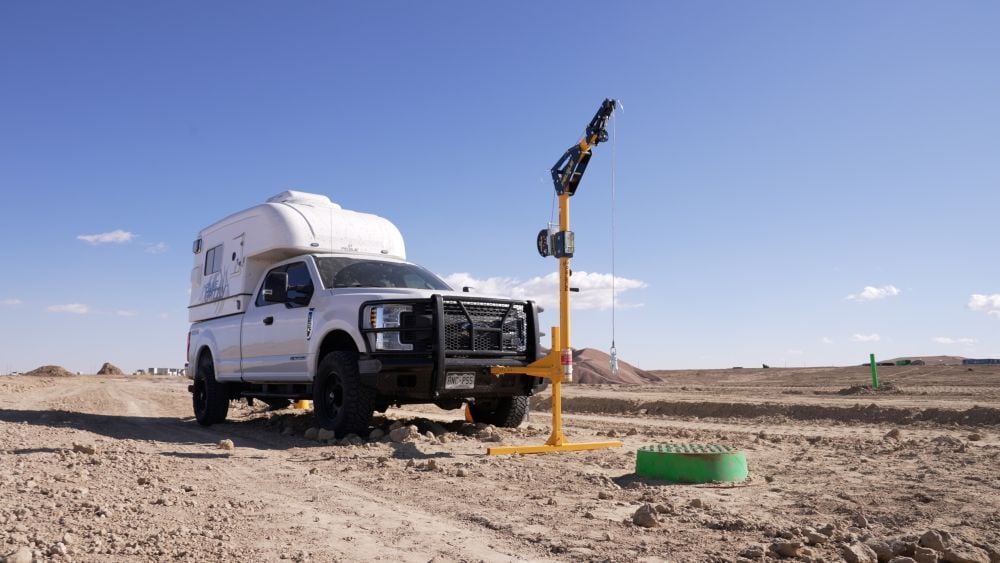

Vehicle Hitch Mount Davit System

When carrying a portable base to a confined space is impractical or unsafe — especially in an emergency — the vehicle hitch mount is the answer. Connects to any 2" square receiver hitch. The multi-directional hitch receptacle (HSJ2) lets you drive directly to the opening and position the davit exactly where you need it. Kit includes VHS-A1 base, DK1824 arm, and HSJ2 receptacle. Hoist not included.

View System
Pelsue_Davit_System_web

Davit Arms

BA24

All Pelsue davit arms include a center post (CP60), elbow (EM01), and offset arm — sold separately from the base. Select the offset that clears your opening. Reversing the elbow adds 6" of additional reach. One hoist bracket and mounting plate included with every complete arm.

BA24 - Davit Arm

Offset Arm, aluminum, with pulley & U-bracket, 18”/24” offset reach

BA36 - Davit Arm

Offset Arm, aluminum, with pulley & U-bracket, 30”/36” offset reach

BA48 - Davit Arm

Offset Arm, aluminum, with pulley & U-bracket, 42”/48” offset reach

Compatible with Permanent Base Davit System

Hoists

Personnel Hoist
PersonnelHoist2

Personnel Hoist

OSHA man-rated hoist for raising and lowering personnel in confined spaces. Works with the LifeGuard, Davit, and Tripod systems via compatible brackets. Can be paired with a Standard SRL for retrieval capability.

View Product
Equipment Hoist
EquipmentHoist-1024x622

Equipment Hoist

Heavy-duty hoist for safely lowering tools, equipment, and materials into confined spaces. Not man-rated — for equipment use only. Mounts to LifeGuard, Davit, and Tripod systems via compatible brackets.

View Product
Quick Rescue Hoist
quick_rescue_hoist

Quick Rescue Hoist

High-speed retrieval hoist designed for emergency extraction — when every second counts. Faster recovery rate than standard personnel hoists. Mounts to LifeGuard, Davit, and Tripod systems via compatible brackets.

View Product

Self-Retracting Lifelines

3-Way Self-Retracting Lifeline
3-way-self-retracting-lifelines

3-Way Self-Retracting Lifeline

Works as a retrieval lanyard, fall arrest device, and work positioning tool — three functions in one unit. The only SRL in the Pelsue line with retrieval capability. When entering a confined space by ladder or being lowered mechanically, attach the worker to this unit as the independent lifeline. Fall arrest within 2 feet.

View Product
Standard Self-Retracting Lifeline
standard-self-retracting-lifelines

Standard Self-Retracting Lifeline

Dedicated fall arrest SRL with internal components in bronze, stainless steel, and aluminum. Includes a stress indicator to warn if the unit has arrested a fall. Pair with a Personnel Hoist for retrieval capability. Fall arrest within 2 feet. Meets or exceeds OSHA requirements for confined space rescue.

View Product

Configure the Right Davit for Your Application

Every confined space is different — opening size, site conditions, and frequency of entry all determine which base and arm combination is right. Our team will configure the full system and confirm bracket compatibility before you order.

1

Choose a Base

Portable for multi-site, Permanent for fixed access, Vehicle Hitch for emergency response & remote work

2

Select an Arm

DK1824 for most openings. DK3036 or DK4248 for wider spans — permanent sleeve required.

3

Add Hoist & SRL + Brackets

Hoist + MB-PF1 bracket.
SRL + MB-FSB bracket. Both can run from the same davit arm simultaneously.

4

Confirm & Order

Call us to verify arm and bracket compatibility for your specific opening size and application.

Ready to Configure Your Davit System?

Our team is ready to help you get a complete davit kit — base, arm, hoist, and brackets — specified and confirmed for your exact application.
