Fiber Splicing Van

A complete fiber splicing workstation built into a Ford Transit — no trailer to tow, no hitch required. Drives and parks anywhere a standard work van can go. Cummins Onan genset, 15,000 BTU rooftop A/C, full countertop and cabinetry, LED lighting, amber strobe lights, and cable access door — all upfitted by Pelsue with superior craftsmanship for years of durable service.

Connect with a Build Partner

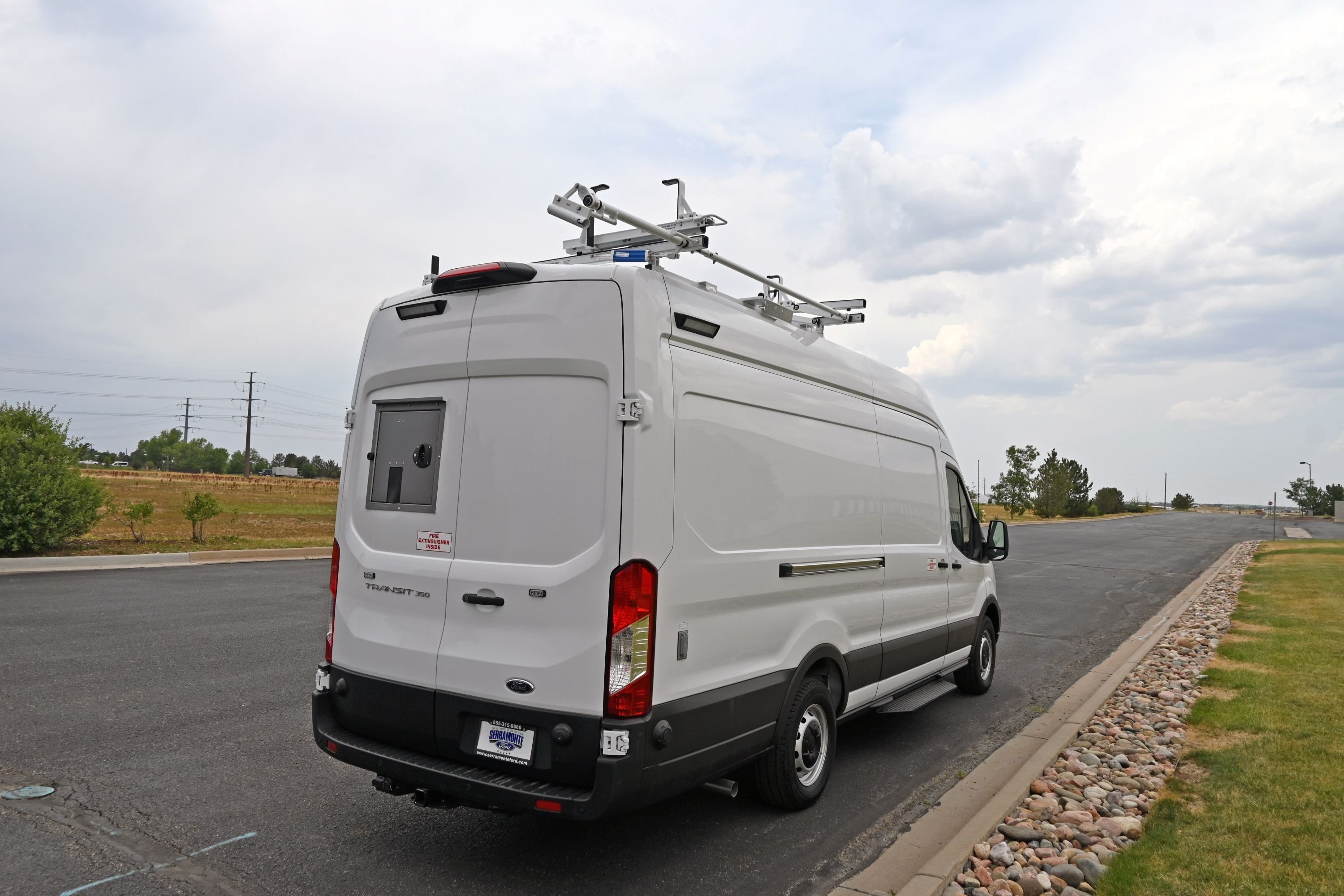

fiber-splicing-van-upfit
No Towing. No Hitch.

Goes Where a Van Goes

A fiber splicing trailer is the right tool for many jobs — but some operations are better served by a vehicle that can go directly to the splice location without towing logistics. The Pelsue Fiber Splicing Van is a Ford Transit Extended High-Roof upfitted with everything a trailer provides: genset power, full A/C, countertops and cabinetry, LED lighting, and cable access — in a package that drives and parks like a standard work van. Slide open the side door and you're at the workstation. No backing in, no leveling, no disconnect.

No tow vehicle needed

The van is the tow vehicle and the workspace in one — no separate truck, no hitch, no trailer wiring.

Access anywhere a van can go

Park at the splice point directly — no wide turning radius, no trailer clearance issues in tight residential and urban locations.

Slide door entry

The van's sliding side door provides fast, effortless entry and exit — no steps, no tailgate, no rear-door clearance requirement.

Full genset power

Cummins Onan genset with 120/240 VAC — all the power needed for splicing equipment, lighting, and A/C simultaneously.

placeholder

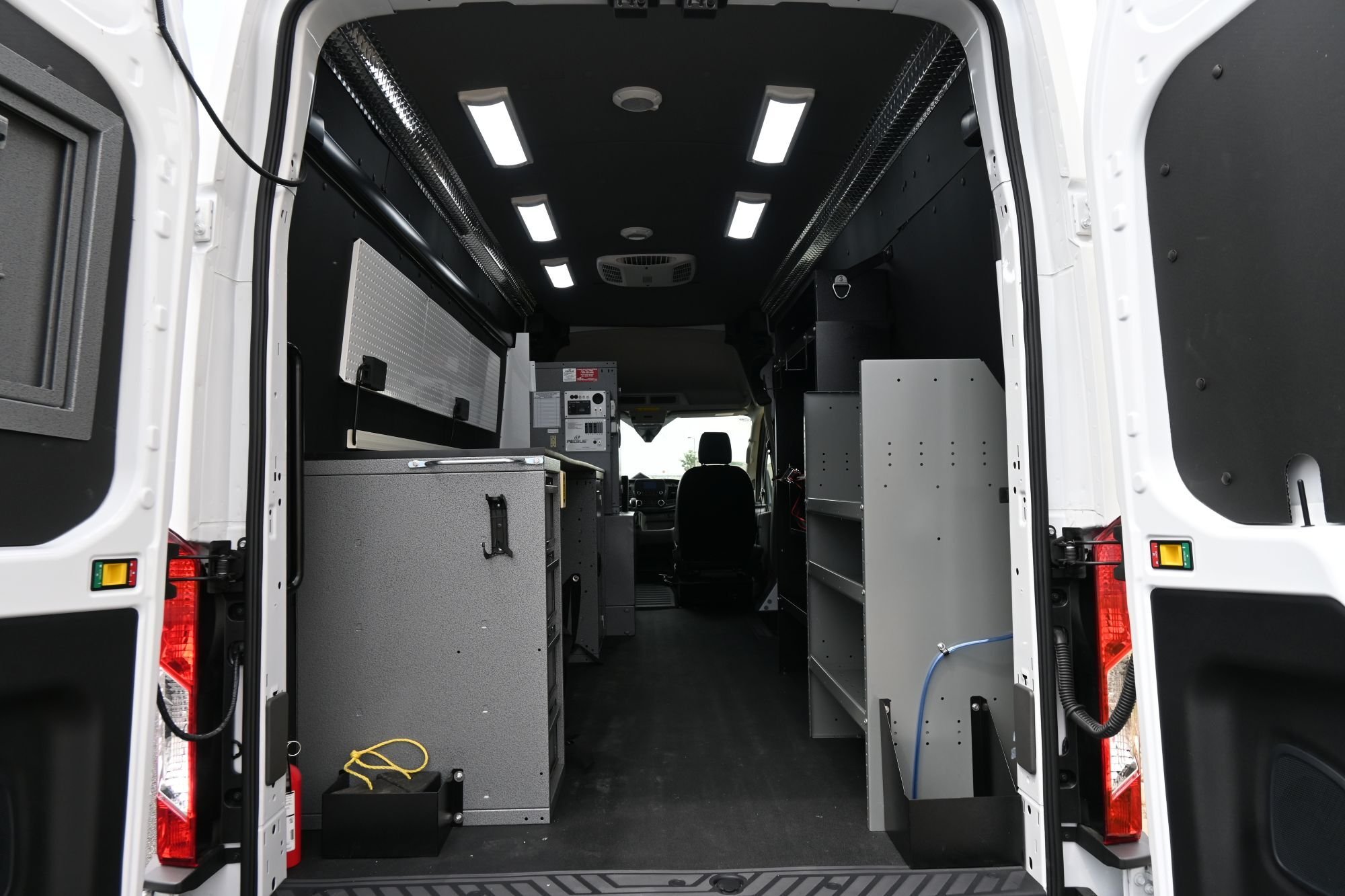

fiber-splicing-van-interior
Workspace · Electrical · Cabinetry

A Complete Splicing Station on Wheels

The cargo area is insulated with fiberglass board and batting, ceiling-lined with polypropylene panels, and equipped with a full-length 36″ countertop running the streetside wall — two Pelsue gravity-lock 4-drawer modules and two single-door cabinet modules below. Full-length pegboard panels above the countertop keep tools and equipment organized and accessible. The Cummins Onan genset lives in a dedicated insulated and lined compartment with a locking exterior access door on the streetside aft of the driver's door. A 16″ × cable access door with 4″ × 6″ slot in the rear streetside door handles cable entry without opening the main rear doors.

Fiber Splicing Accessories

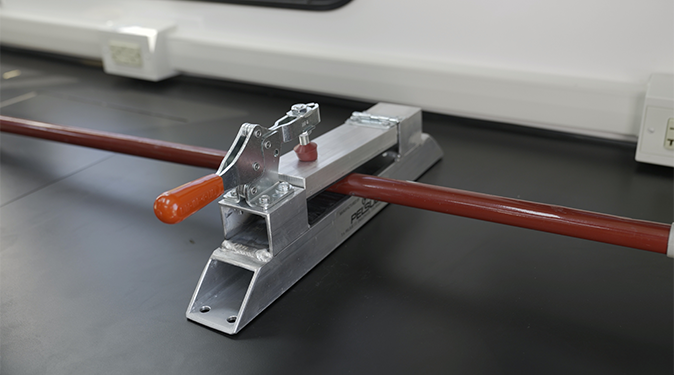

heavy-duty-fiber-splicing-clamp

Heavy-Duty Cable Clamp

For securing large fiber cable runs during splicing operations in the field.

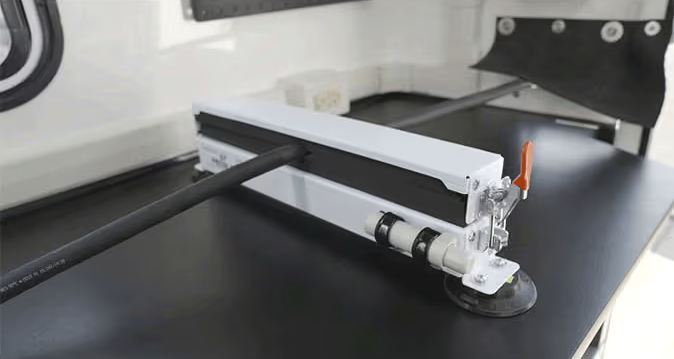

fiber_splicing_clamp

Fiber Optic Cable Clamp

Precision cable management for fiber optic splicing — keeps cable positioned and protected.

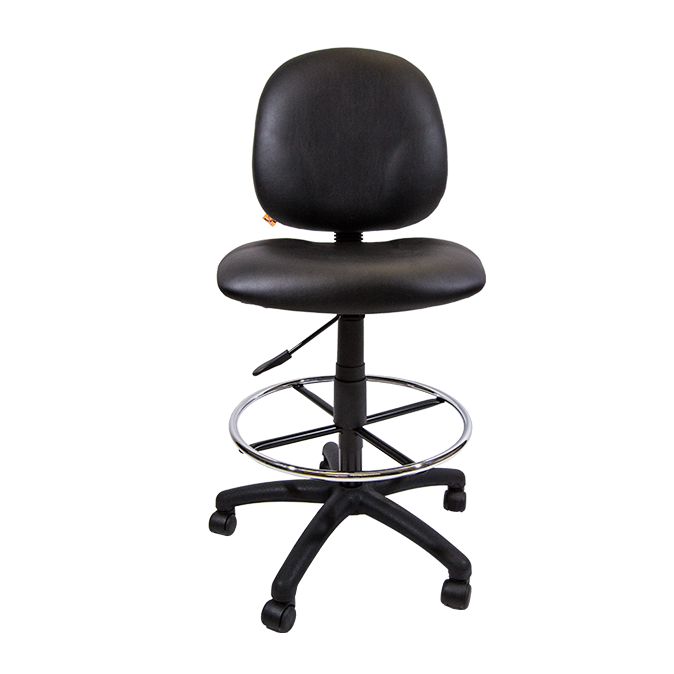

splicing-task-chair

Splicing Task Chair

Adjustable-height stool designed for extended splicing sessions — one included standard.

Fiber Splicing Platforms

More Fiber Splicing Solutions

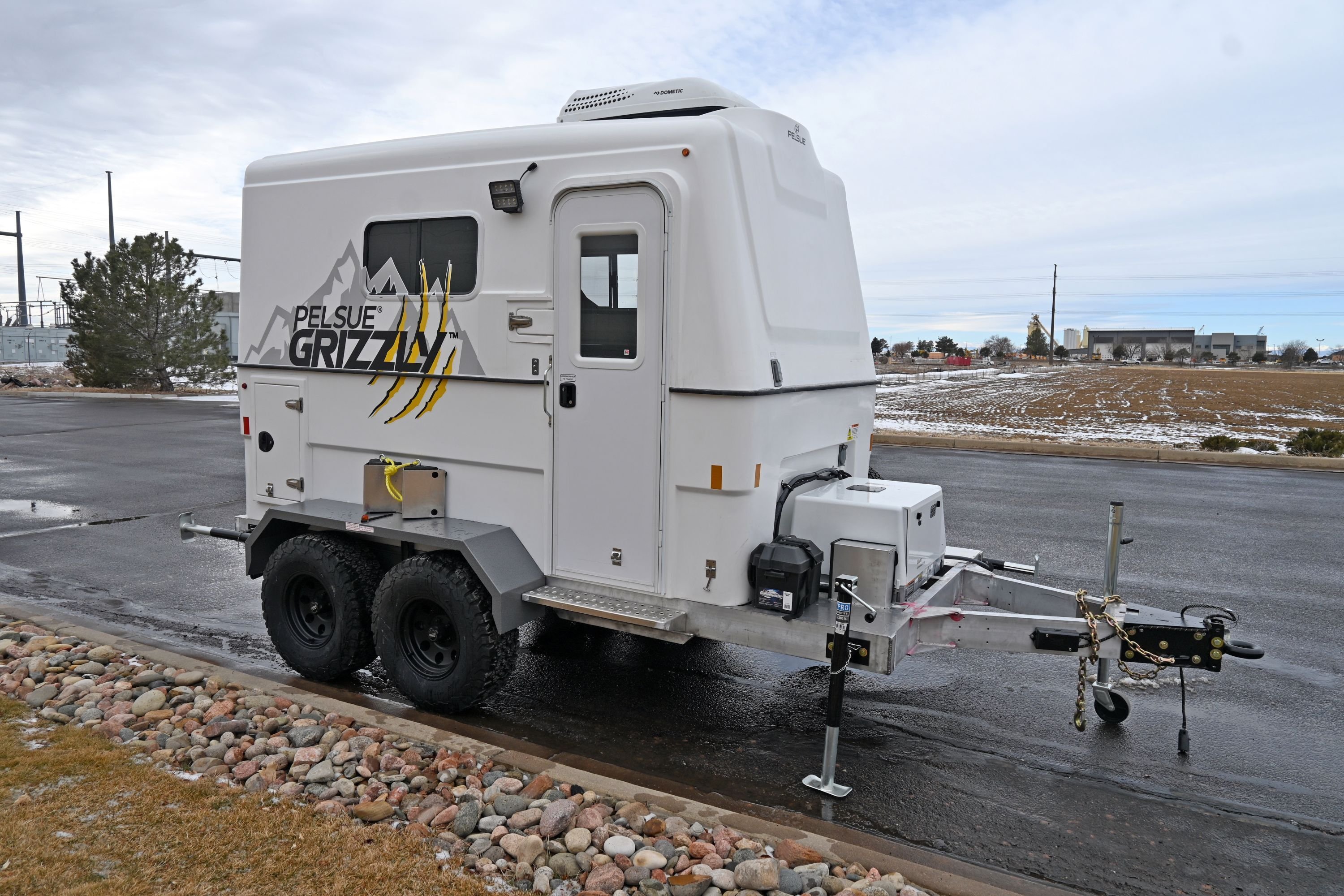

grizzly-fiber-splicing-trailer

FiberLite® Grizzly™ Fiber Splicing Trailer

View Product

FiberLite® Grizzly™ Fiber Splicing Trailer

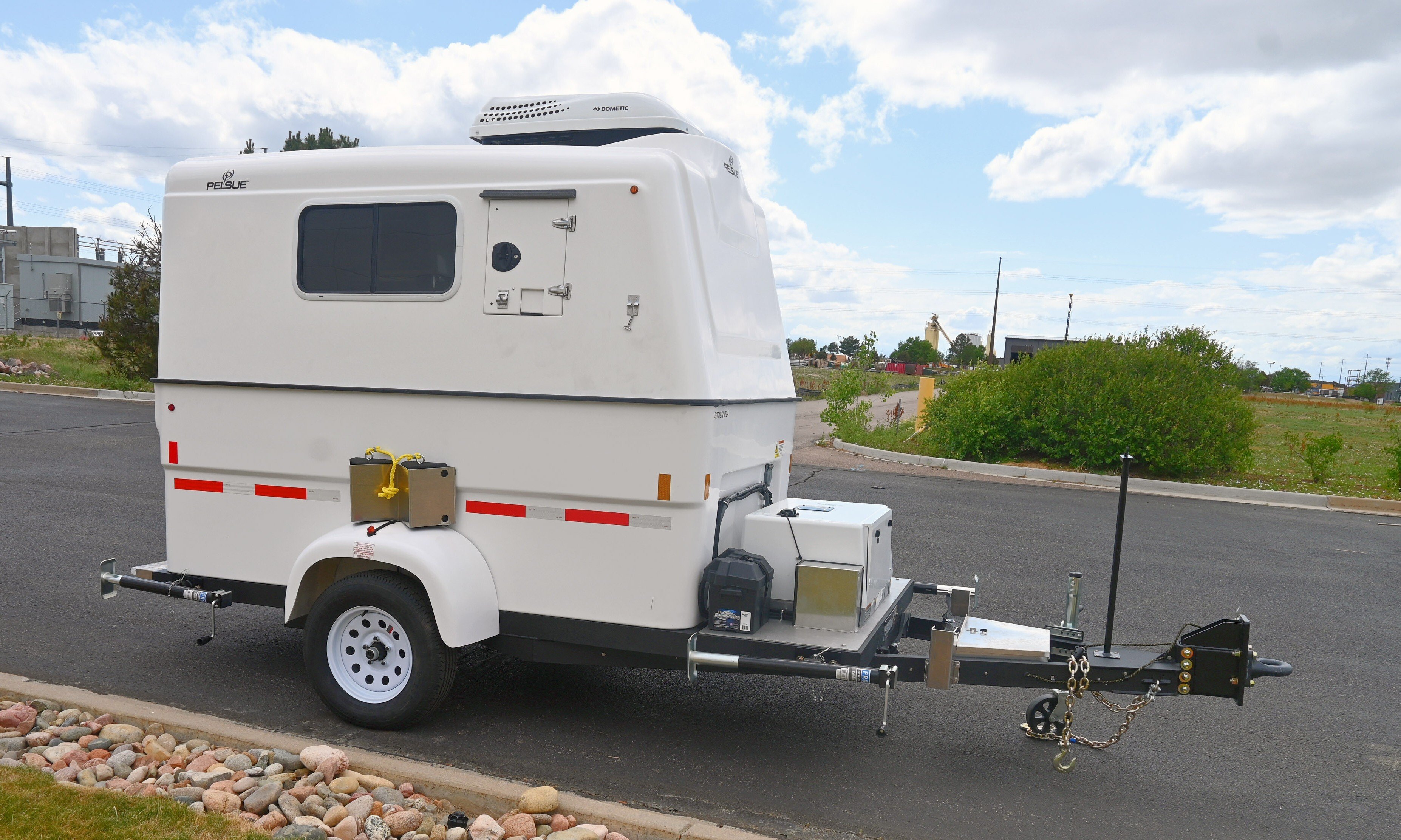

pod-tradesman_fiber-splicing-trailer

FiberLite® Pod Tradesman™ Fiber Splicing Trailer

View Product

FiberLite® Pod Tradesman™ Fiber Splicing Trailer
fiber-splicing-van-upfit

FiberLite® XL Tradesman™ Fiber Splicing Trailer

View Product

FiberLite® XL Tradesman™ Fiber Splicing Trailer

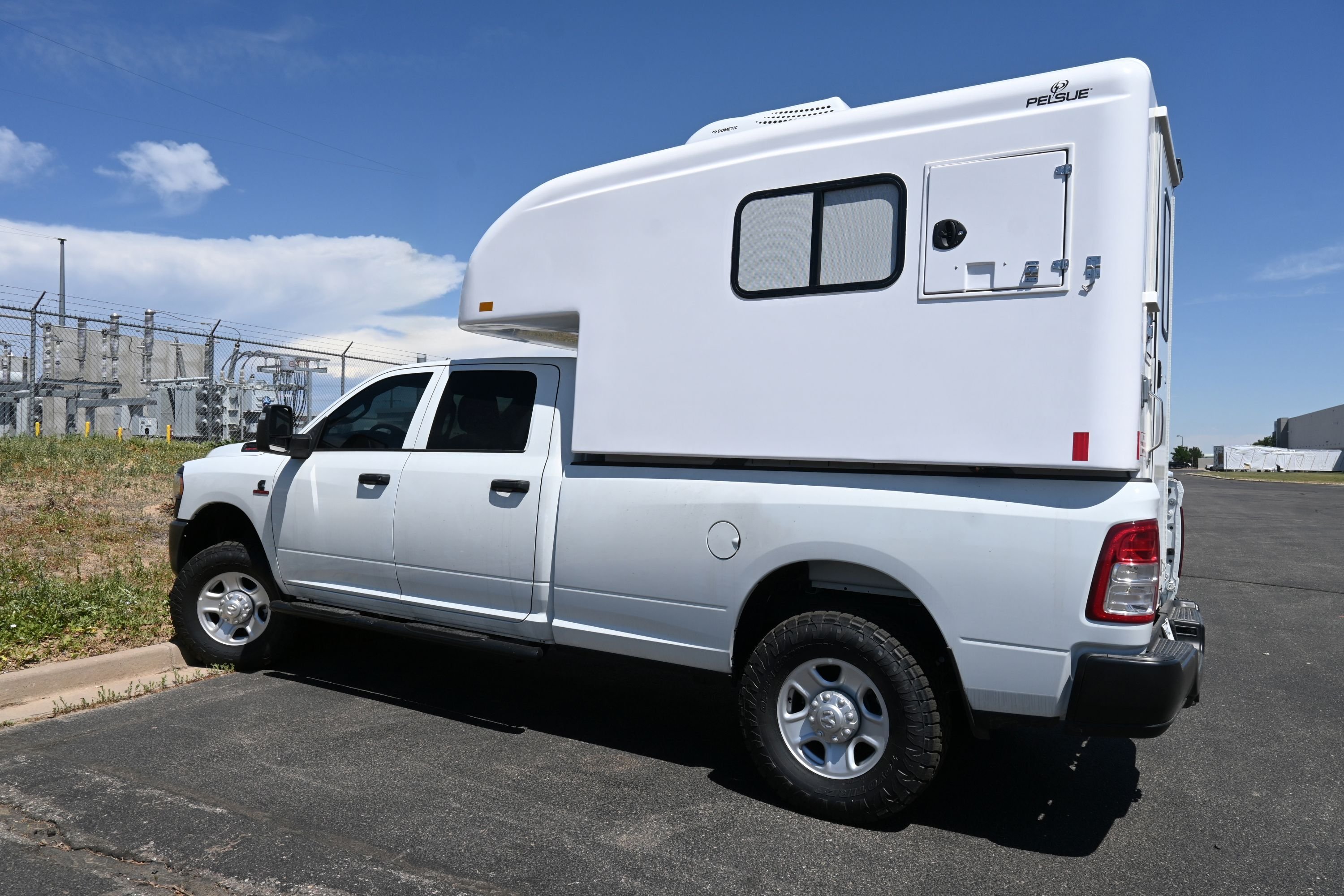

fiber-splicing-truck-insert-1

Fiber Splicing Truck Insert

View Product

Fiber Splicing Truck Insert
