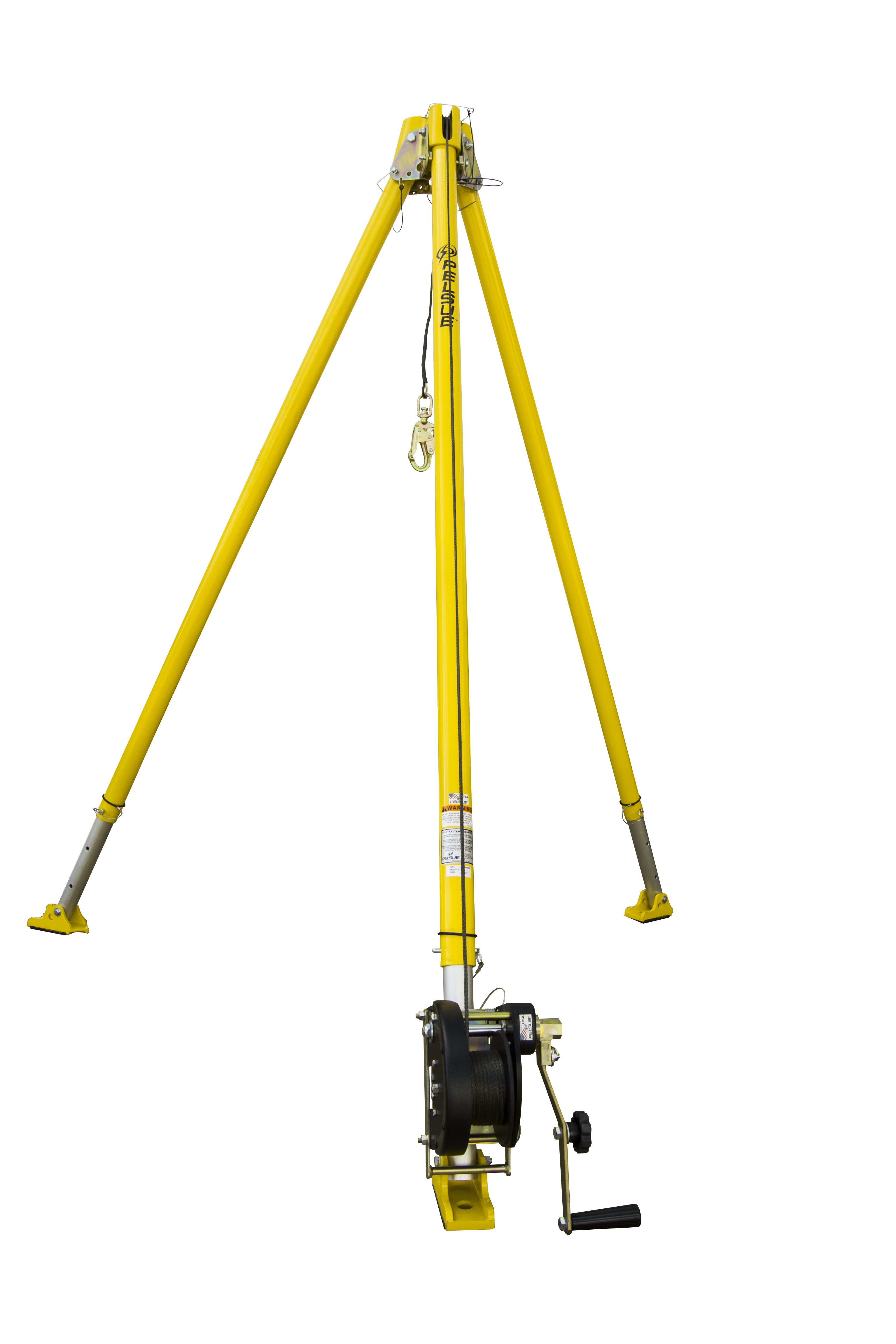

Rescue Tripod
A rugged, telescoping aluminum tripod built for confined space rescue and retrieval. Adjustable leg angles, three certified anchor points, and a built-in cable pulley — ready when seconds matter. OSHA Compliant. ANSI Certified. Made in USA
310 lb Capacity
3 Anchor Points
7' or 11' Max Height
5,000 lb Proof Load
Two Models
RT07
Max height 7' · 44 lbs.
P054
Max height 11' · 65 lbs.
Built for the Rescue
310 lb Rated Capacity
Supports a single user up to 310 lbs. — including tools, belts, and all worn equipment. Rated for real-world confined space entry, not just ideal conditions.
3 Anchor Points
Three independent anchor points give crews options at the point of rescue — use the built-in cable pulley or connect a hoist or SRL to any certified anchor location.
7' or 11' Max Height
Choose the RT07 at 7' or the P054 at 11' — both with telescoping legs that adjust in 5" increments and spread to any angle to fit the job site.
5,000 lb Proof Load
All three anchor points are proof rated to 5,000 lbs. in accordance with OSHA standards. Engineered and tested for demanding rescue applications.

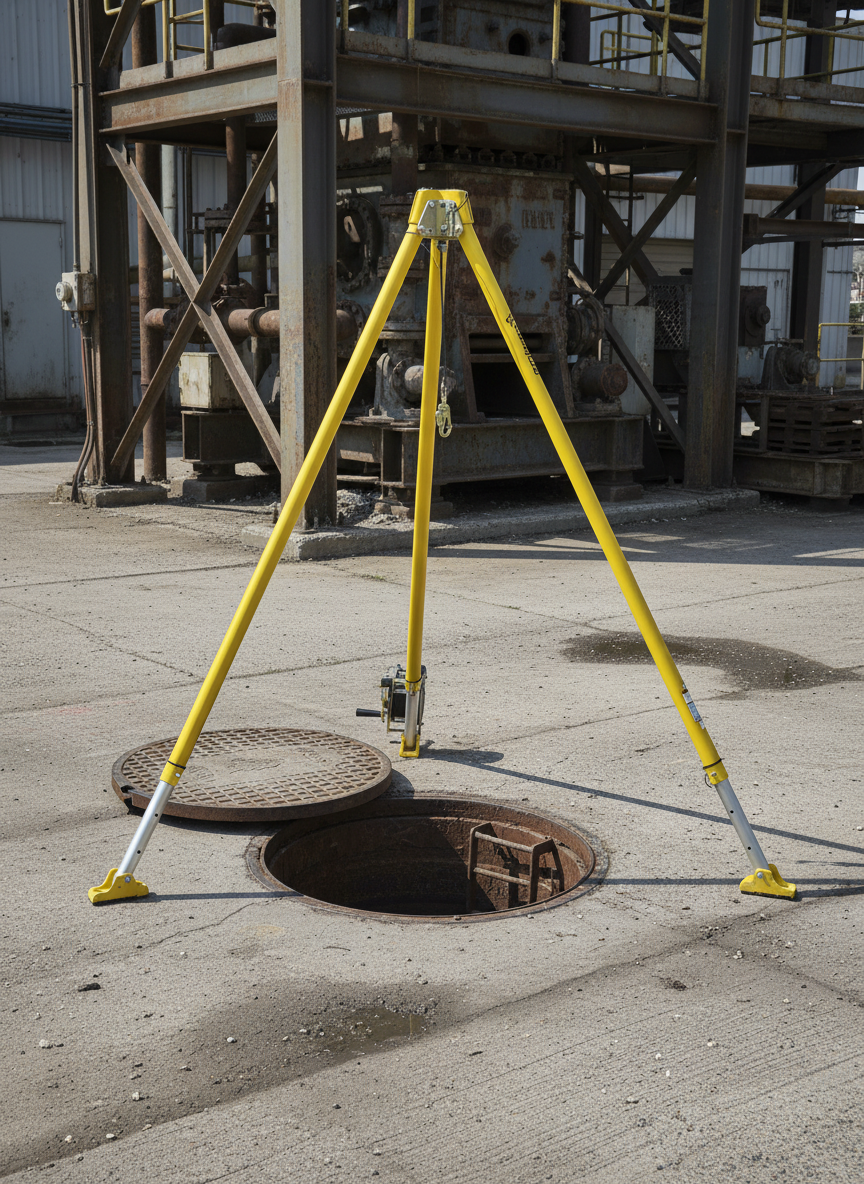

Adjusts to Any Rescue Situation
No two confined space entries are the same. The Rescue Tripod's telescoping legs adjust in 5" increments and spread to any angle — giving crews a stable, centered overhead anchor point even on uneven or sloped surfaces.
Three Anchors. One Built-In Pulley.
The Rescue Tripod gives crews options at the point of rescue. Use the built-in cable pulley for direct retrieval, or attach a hoist or SRL to any of the three certified anchor points — all proof rated to 5,000 lbs. in accordance with OSHA standards.
Model Comparison
Full Specifications
Model Specs
- RT07: Maximum height 7' — 44 lbs.
- P054: Maximum height 11' — 65 lbs.
- P057: Heavy-duty carrying case for RT07 — 3 lbs.
- P058: Heavy-duty carrying case for P054 — 4 lbs.
Both Models
- Telescoping aluminum legs — height adjustable in 5" increments
- Legs adjustable to any angle for demanding rescue environments
- Rated for a single user up to 310 lbs. (including tools and equipment)
- Three anchor points — each proof rated to 5,000 lbs. (OSHA compliant)
- Built-in cable pulley for retrieval operations
- Meets and exceeds OSHA and ANSI standards
Man-Rated Certification
- Tested to meet OSHA standards for confined space rescue and retrieval
- Intended for use by workers trained as a "competent person" per OSHA standards
- Hoists, SRLs, and brackets are sold separately
Compatible Equipment - Not Included
- Personnel hoists and quick rescue hoists
- Equipment hoists
- Standard self-retracting lifelines (SRLs)
- 3-Way self-retracting lifelines
- Hoist mounting bracket: MB-TL1
- SRL mounting bracket: MB-FST
Accessories That Complete the System
Personnel Hoists
View Product
Equipment Hoists
View Product
Quick Rescue Hoists
View Product
3-Way Self-Retracting Lifelines
View Product
Standard Self-Retracting Lifelines
View Product
MB-FST Bracket (for SRLs)

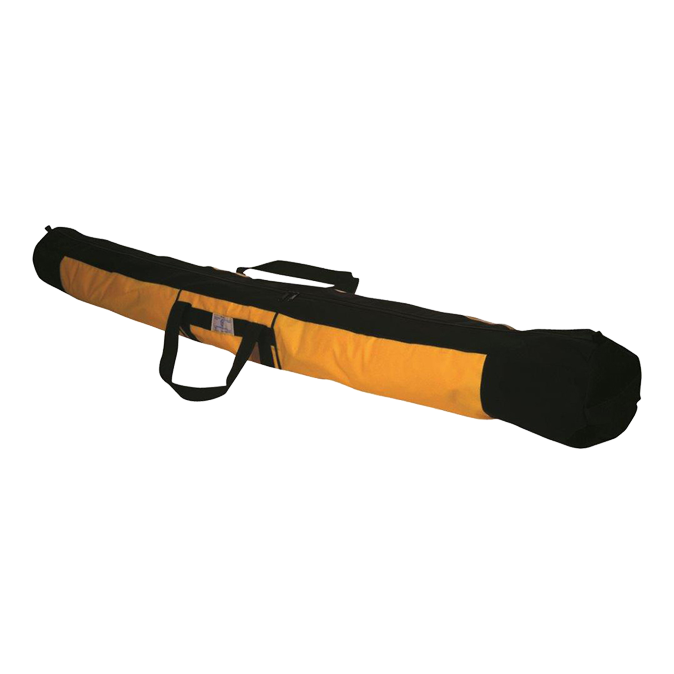

P057 - Carrying Case for RT07
Heavy-duty carrying case for the 7' Rescue Tripod. 3 lbs.
P058 - Carrying Case for P054
Heavy-duty carrying case for the 11' Rescue Tripod. 4 lbs.
Have a Question?
Talk to a Confined Space Partner
Pelsue sells through an authorized distributor network. Reach out to our safety partners, we'll answer your technical questions and connect you with the right distributor in your area.
