Hoists

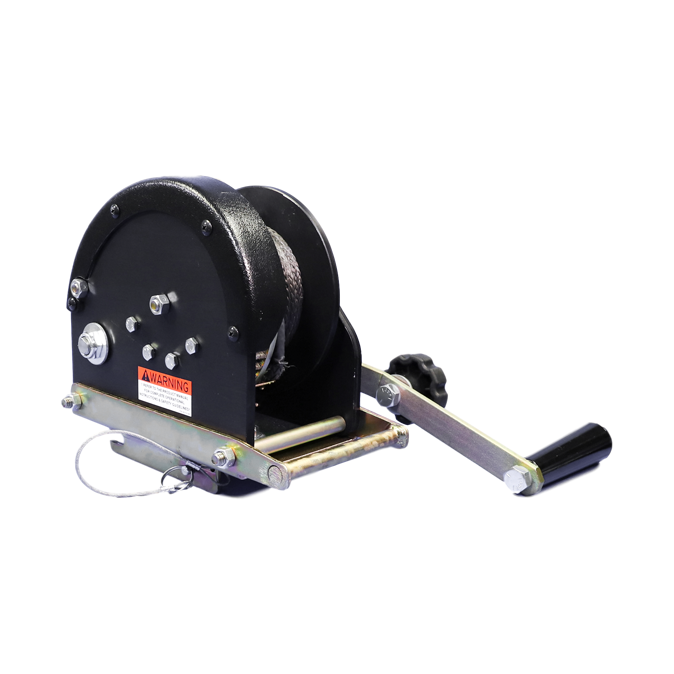

Personnel Hoist

Routine Entry & Retrieval

The standard hoist for confined space entry. Designed and tested as a mechanical retrieval and lifting device per OSHA 1910.146 and ANSI Z117.1 — man-rated to 310 lb for the controlled raising and lowering of personnel. A double-pawl braking system provides continuous braking, backed by a secondary centrifugal overspeed brake that engages if the pawls fail. Line only pays out with a counterclockwise handle turn under at least 10 lb of applied force — accidental line release is not possible. Available with stainless steel cable (best for most applications) or Technora® synthetic rope (for environments where electrical conductivity is a concern). Three line lengths: 70′, 100′, and 150′. Made in USA.

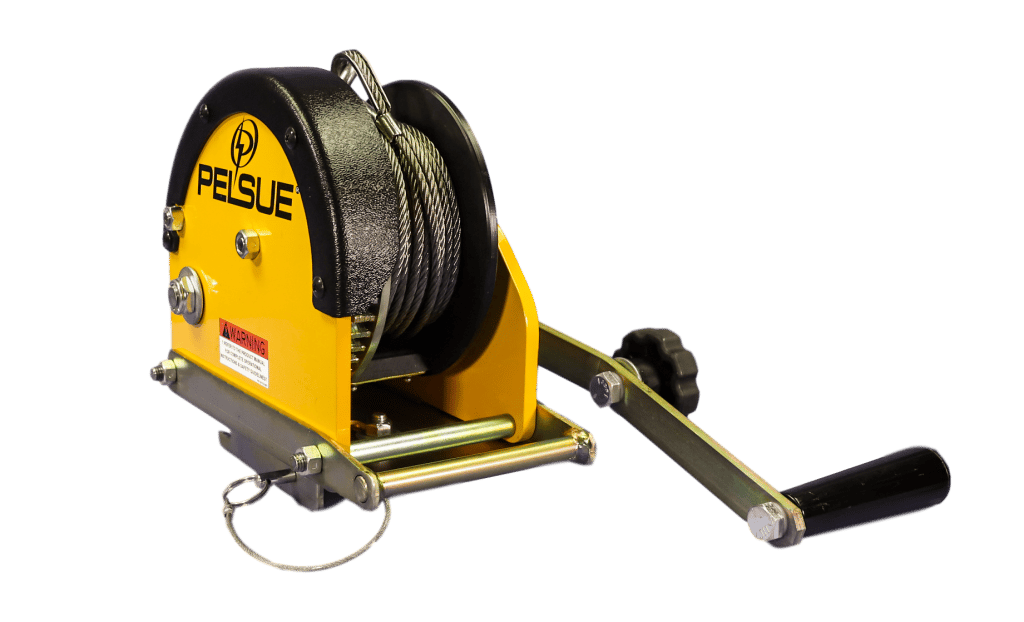

Equipment Hoist

Equipment Lowering & Retrieval

Rated to 700 lb for the everyday lowering and retrieval of tools, equipment, and materials into confined spaces. Attaches to the same Pelsue anchorage points as the personnel hoists via the standard quick-release bracket — no separate rigging required. Available with stainless steel cable or Technora® synthetic rope. The swivel double-locking snap hook on the end fitting is standard; alternate end fittings are available on request. Must never be used to raise or lower personnel. Not to be operated over areas where people are present.

Quick Rescue Hoist

Rescue & Emergency Retrieval

Built for the scenario where a worker needs to be rescued but isn't already attached to a hoist. The rope is not fixed to the drum — instead, a rope-gripping cleat lets the rescue line be placed at any point along its length and immediately tensioned. No slack to take up. No waiting. In a toxic atmosphere, minutes matter. Also solves a specific roadside vault problem: since the entrant is not tethered to a fixed external point, a passing vehicle striking the equipment won't drag the worker. Available in two variants: PHQR (under-drum rope load, handle on left) and PHQRR (over-drum/reverse, handle on right). Technora® rope only. Max 70′. Weight: 21.5 lbs.

Personnel (PH)

Quick Rescue (PHQR)

Equipment (WH)

Capacity

310 lb - Man-Rated

700 lb - Equipment Only

Personnel use

✓ Man-rated

✗ Equipment only

Rope fixed to drum

✓ Yes

✗ No — gripping cleat

✓ Yes

Attach at any line point

✓ Yes

Line material

SS cable or Technora®

Technora® only

SS cable or Technora®

Max line length

70′ / 100′ / 150′

70′ max

70′ standard

Secondary brake

✓ Overspeed brake

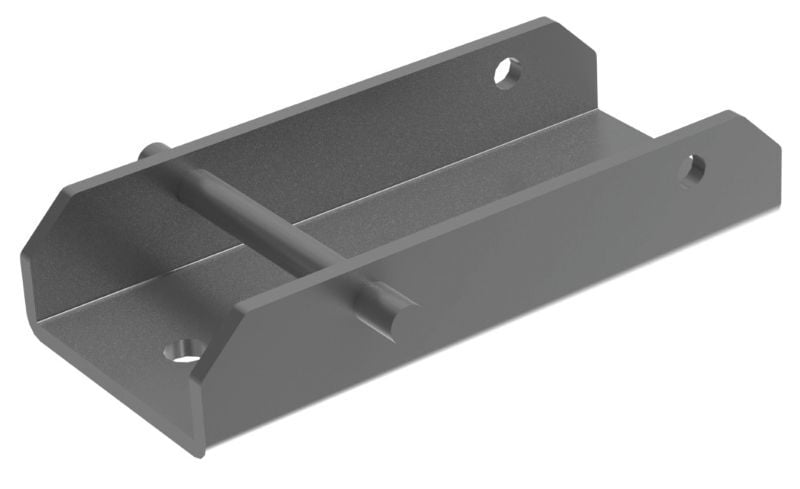

Bracket (LifeGuard/Davit)

MB-PF1

Quick-Release std.

Bracket (Tripod)

MB-TL1

Quick-Release std.

Best use case

Routine entry & retrieval

Emergency / roadside vault

Tools & equipment lowering

Hoist + Tripod

MB-TL1

Includes MB-PF1 and MA-PT1 adapter. The complete bracket solution for connecting PH or PHQR Series hoists to the Rescue Tripod.

MA-PT1 — Adapter

MA-PT1

Hoist adapter used in conjunction with MB-PF1 to connect PH Series hoists to the Tripod. Included in MB-TL1 as a complete kit.

MA-PT1 — Adapter

MA-PT1

Hoist adapter used in conjunction with MB-PF1 to connect PH Series hoists to the Tripod. Included in MB-TL1 as a complete kit.

MA-PT1 — Adapter

MA-PT1

Hoist adapter used in conjunction with MB-PF1 to connect PH Series hoists to the Tripod. Included in MB-TL1 as a complete kit.

Choose Your Hoist

Personnel Hoists for routine entry, Equipment Hoist for equipment lowering, Quick Rescue Hoist for emergency rescue

Select Line Type & Length

Stainless steel for most applications, Technora® where electrical conductivity is a risk.

Confirm Your Bracket

MB-PF1 for LifeGuard or Davit. MB-TL1 for Tripod. Wrong bracket voids rated capacity.

Add an SRL

An independent lifeline (3-Way or Standard SRL) is required alongside the hoist for OSHA compliance.
