Portable Davit Fall Protection System
A modular, structural aluminum davit system for fall protection and rescue & retrieval. Lightweight, field-configurable, and fully deployed in about 5 minutes — with offset arm options from 18” to 48”. Hoists sold separately.
OSHA Compliant. ANSI Certified. Made in USA.
310 lb Capacity
~5 Setup
18”–48” Offset Reach
Aluminum Material
Two Models
RK-EB1
18"/24" arm · base 36"–56" · hoists sold separately
RK-EB2
18"/24" arm · base 46"–66" · hoists sold separately
One System. Every Application.
The Portable Davit eliminates the guesswork of mixed equipment. Configure the offset arm, base, and hoist to match your exact job — the same system that anchors a worker going in can retrieve them if something goes wrong. Structural aluminum throughout, man-rated to 310 lbs., and fully set up in approximately 5 minutes.
Model Comparison
Full Specifications
Complete Arm Kits
- DK1824 — Mast with 18"/24" offset arm (BA24) · 45 lbs.
- DK3036 — Mast with 30"/36" offset arm (BA36) · 48 lbs.
- DK4248 — Mast with 42"/48" offset arm (BA48) · 51 lbs.
- Each kit includes center post (CP60) and elbow (EM01)
- Base and hoist sold separately for all kits
Individual Parts
- BA24 — Offset arm 18"/24" with pulley & U-bracket · 7 lbs.
- BA36 — Offset arm 30"/36" with pulley & U-bracket · 10 lbs.
- BA48 — Offset arm 42"/48" with pulley & U-bracket · 12 lbs.
- EM01 — Elbow, fabricated aluminum, reversible · 13 lbs.
- CP60 — Center post with hoist mount, 60"H · 26 lbs.
Center Post Extensions
- CPX-15 — 15" extension, powder coated steel · 22 lbs.
- CPX-24 — 24" extension, powder coated steel · 25 lbs.
- CPX-36 — 36" extension, powder coated steel · 31 lbs.
- All Pelsue Davit Systems are man-rated to 310 lbs.
Bases
- EB56 — Adjustable 36"–56" inside width, 18" max offset · 100 lbs.
- EB66 — Adjustable 46"–66" inside width, 24" max offset · 115 lbs.
- DBF-43A — Folding aluminum, 48"W × 36" deep, 18" max offset · 35 lbs.
Build Your Configuration
The Portable Davit System is fully modular — select the arm kit, base, and extensions that fit your operation. All parts are available individually for replacement or custom builds.

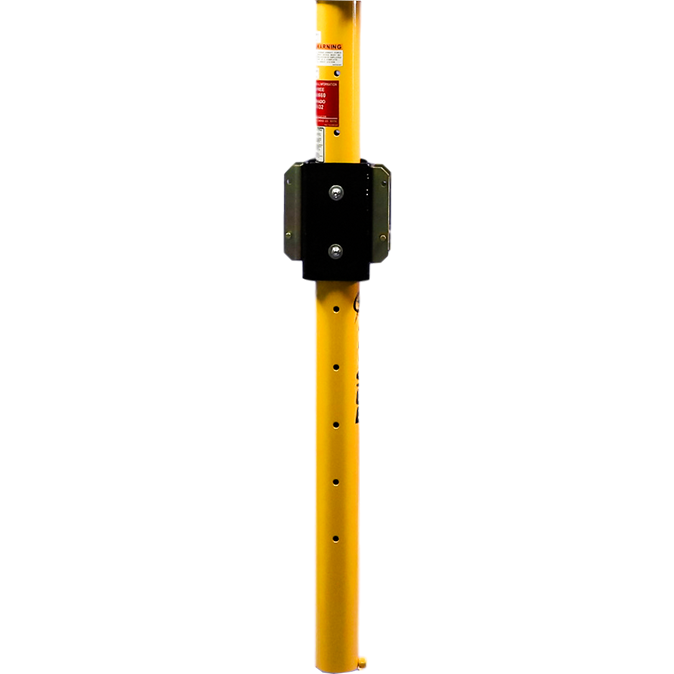

CP60 - Davit Center Post
Aluminum, 60"H with hoist mounting bracket. 26 lbs.

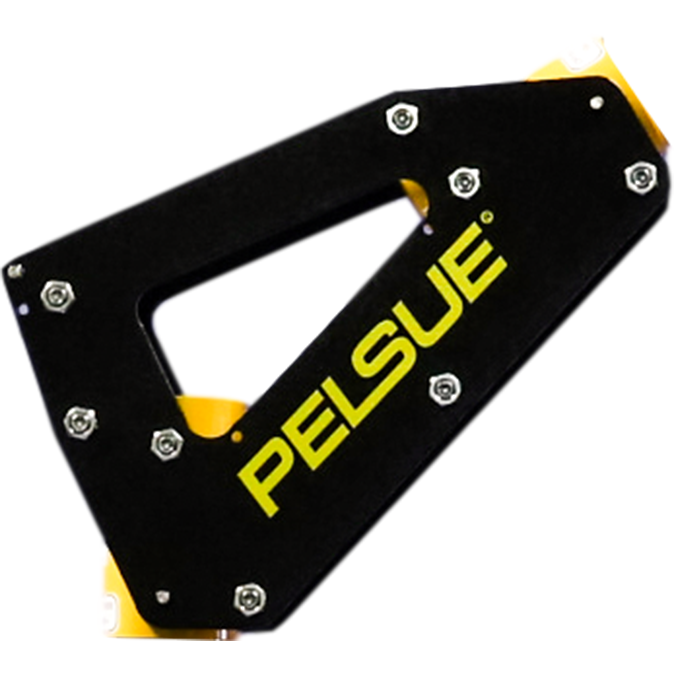

EM01 - Davit Elbow
Fabricated aluminum, reversible for different offset lengths. 13 lbs.

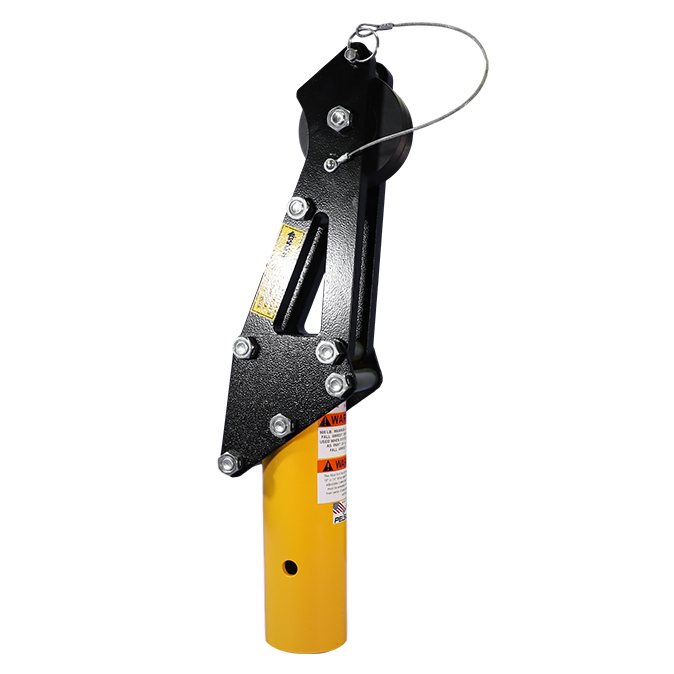

BA24 - Offset Arm 18"/24"
Aluminum with pulley & U-bracket. 18"/24" offset reach. 7 lbs.
BA36 - Offset Arm 30"/36"
Aluminum with pulley & U-bracket. 30"/36" offset reach. 10 lbs.

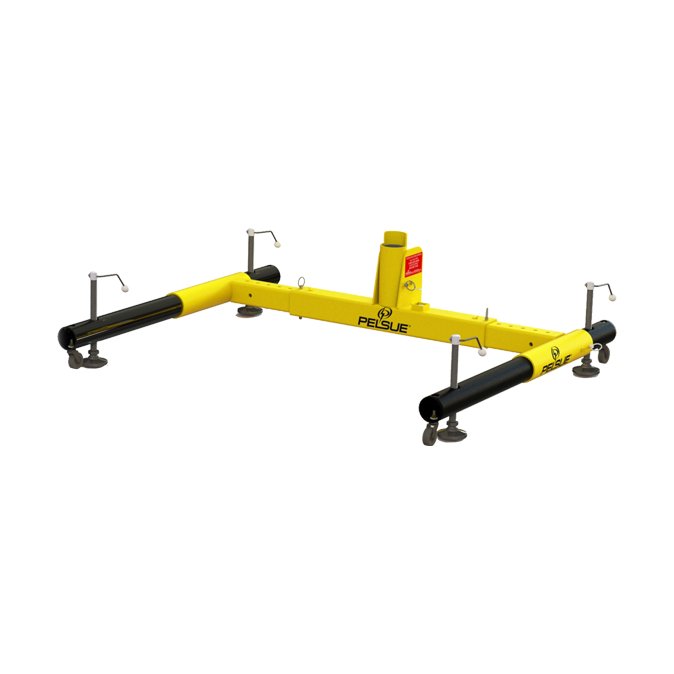

EB56 - Adjustable Base 36"–56"
Adjustable 36"–56" inside width, 18" max offset. 100 lbs.
EB66 - Adjustable Base 46"–66"
Adjustable 46"–66" inside width, 24" max offset. 115 lbs.

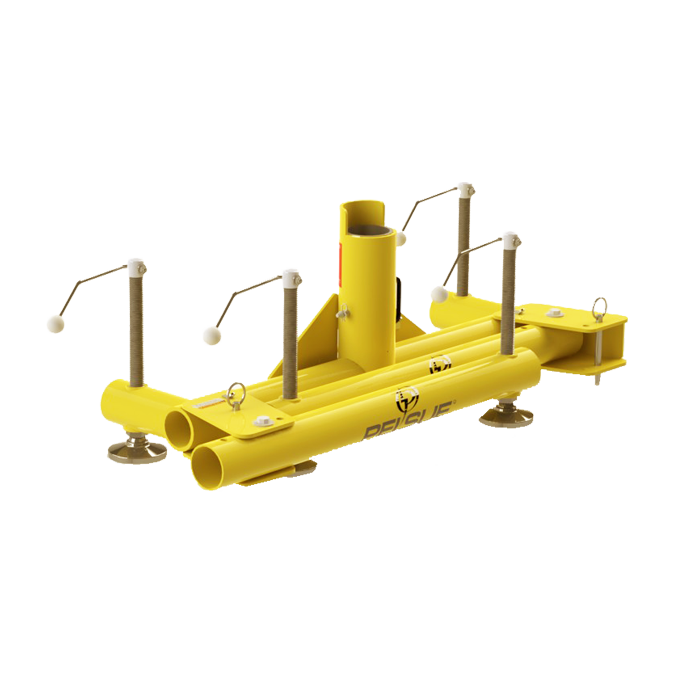

DBF-43A - Folding Base
Aluminum folding base, 48"W × 36" deep, 18" max offset. 35 lbs.

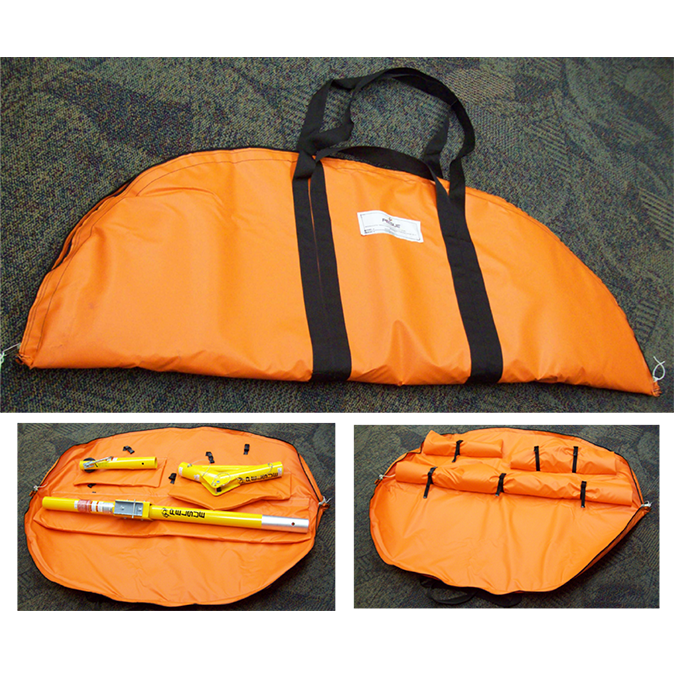

BGDK - Davit Carry Bag
Carry bag for DK Series kits. Protects components during transport and storage.
Hoists, SRLs, & Brackets
The Portable Davit System is compatible with Pelsue’s full line of hoists, SRLs, and brackets — sold separately to complete your fall protection or rescue configuration.
Personnel Hoists
View Product
Equipment Hoists
View Product
Quick Rescue Hoists
View Product
Standard Self-Retracting Lifelines
View Product
3-Way Self-Retracting Lifelines
View Product

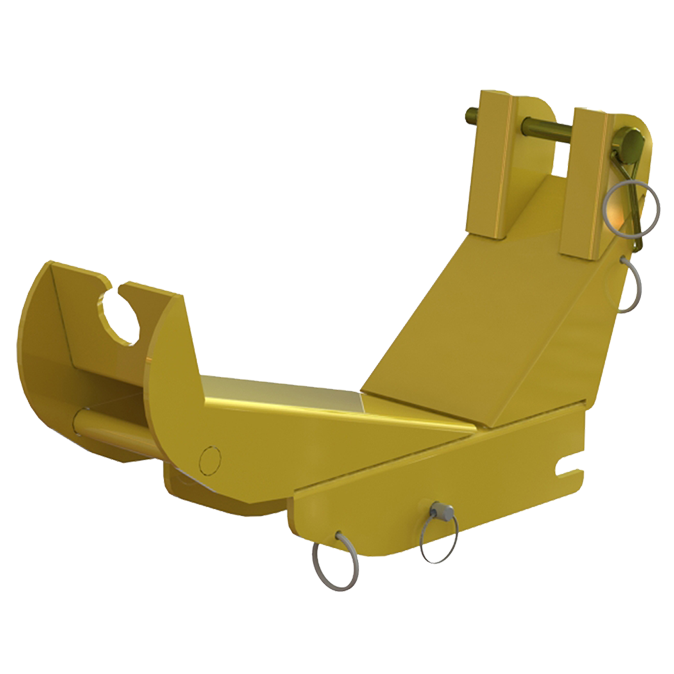

MB-FSB Bracket
Bracket to attach all SRLs to MB-PF1 quick-connect bracket
Talk to a Safety Partner
Pelsue sells through an authorized distributor network. Reach out to our safety partners, we'll answer your technical questions and connect you with the right distributor in your area.
