Fall Protection

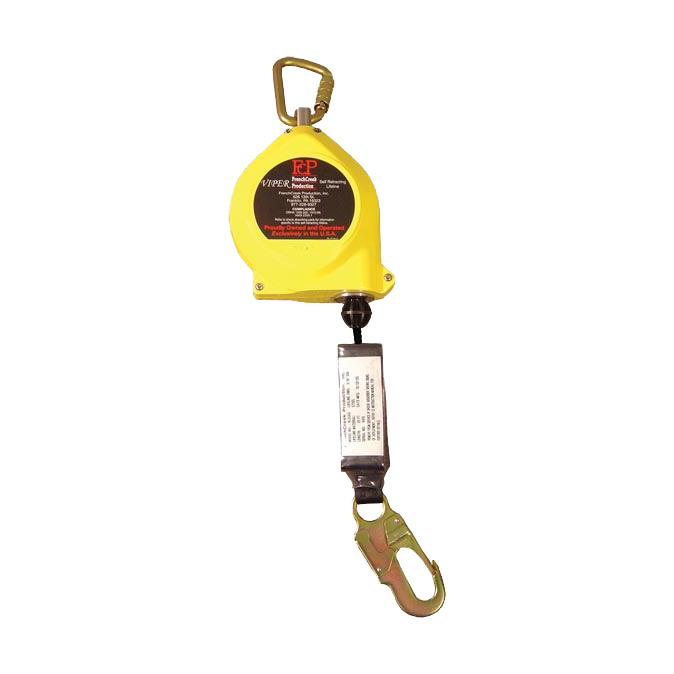

Standard Self-Retracting Lifelines

Fall arrest protection for confined space entry, construction, and utility operations. Locks within 2 feet of a fall, automatically retracts to eliminate slack, and includes a stress indicator that confirms if the unit has arrested a fall. 310 lb man-rated. Four models in 25′ and 50′ lengths. OSHA Compliant. Carabiner Included.

standard-self-retracting-lifelines

All Models

Model
Cable Type
Length
Includes
Capacity
Weight
PSRL1125-SS
3/16" Stainless Steel Cable
25′
Carabiner
310 lbs.
11 lbs.
PSRL1125-TR
1/4" Technora® Rope
25′
Carabiner
310 lbs.
9 lbs.
PSRL1150-SS
3/16" Stainless Steel Cable
50′
Carabiner
310 lbs.
20 lbs.
PSRL1150-TR
1/4" Technora® Rope
50′
Carabiner
310 lbs.
18 lbs.
Locks Fast. Retracts Clean.

Personal Fall Arrest System

Standard SRLs eliminate the slack hazard of a traditional lanyard. The line pays out as the worker moves and instantly retracts to take up slack — so there's never excess line that could contribute to fall distance. When a fall occurs, an inertia-activated braking mechanism locks the drum within 2 feet, arresting the fall before it becomes serious. Required for confined space entry by ladder or fixed structure when a separate lifeline is mandated.

Locks within 2 feet of fall initiation — inertia-activated braking
Locks within 2 feet of fall initiation — inertia-activated braking
Automatic retraction eliminates slack and trip hazards continuously
Automatic retraction eliminates slack and trip hazards continuously
Stress indicator confirms if the unit has arrested a fall
Stress indicator confirms if the unit has arrested a fall
Internal components: bronze, stainless steel, and aluminum
Internal components: bronze, stainless steel, and aluminum
Carabiner included — connects to compatible harness dorsal D-ring
Carabiner included — connects to compatible harness dorsal D-ring
Available with 3/16" stainless steel cable or 1/4" Technora® rope
Available with 3/16" stainless steel cable or 1/4" Technora® rope
Meets or exceeds all applicable OSHA confined space requirements
Meets or exceeds all applicable OSHA confined space requirements
1125
Choosing the Right SRL

Standard vs 3-Way SRL

Both meet OSHA requirements for confined space. The difference is what happens after a fall — standard SRLs arrest and hold, 3-Way SRLs can also raise and lower for emergency rescue.

Standard SRL
3-Way SRL
Fall arrest
✓ Locks within 2 feet
✓ Locks within 2 feet
Automatic retraction
✓ Eliminates slack continuously
✓ Eliminates slack continuously
Stress indicator
✓ Confirms fall event
✓ Confirms fall event
Rescue retrieval
✖ Not available
✓ Hitch mode for emergency use
Emergency lowering
✖ Not available
✓ Controlled descent capability
Weight
✓ Lightest weight — 9–20 lbs. depending on model
✖ Heavier — 32 lbs. all models · Re-cert required every 3 years
Compatible Equipment

Accessories

PHQR_BAG2

BGW3 - SRL & Hoist Bag

Carrying case which fits all hoists and SRLs

501178-T01-_MB-FST_

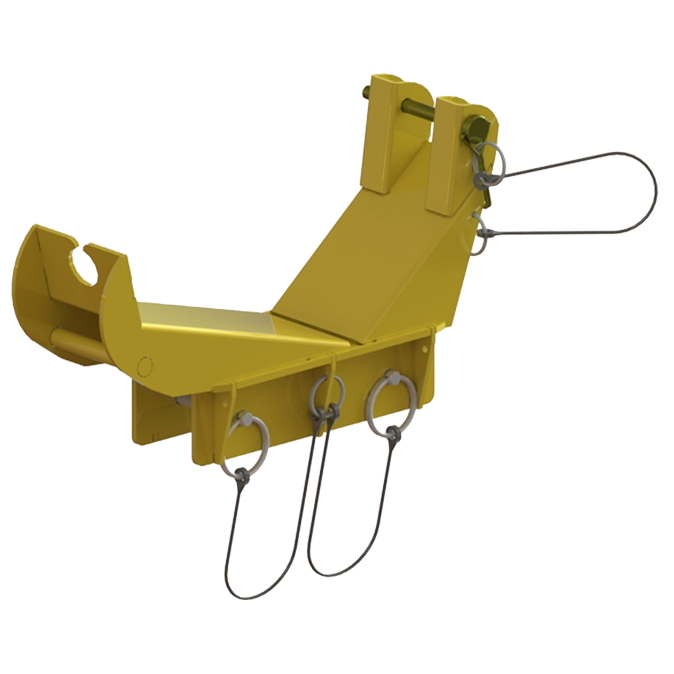

MB-FST - Adapter Bracket

Adapter bracket for compatible anchor system mounting. Included in -SST and -TRT models.

501178-001-_MB-FSB_

MB-FSB - Adapter Bracket

Adapter bracket for compatible anchor system mounting. Included in -SSB and -TRB models.
