Personnel Hoists
Designed and tested per OSHA standards for raising and lowering persons entering or exiting confined spaces. Man-rated to 310 lbs. and available in stainless steel cable or Technora® rope. OSHA Compliant. Made in USA.
23′/min Retrieval
5.5:1 Gear Ratio
70′–100′ Lengths
310 lb Capacity
Models
OSHA-Rated. Built to Last.

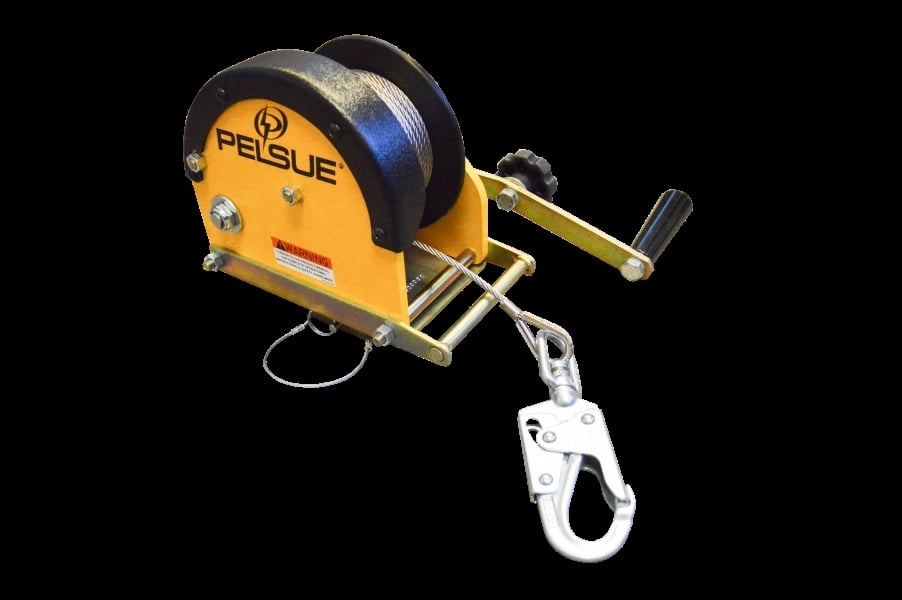

Pelsue Personnel Hoists are designed and tested as retrieval and lifting devices per OSHA Safety Standards for confined space entry and exit. Built in America with high-quality materials — a secondary overspeed brake, double pawls on the friction brake, and continuous braking drive that prevents freewheeling give you multiple layers of redundancy on every descent and retrieval.
Specifications
All hoists share the following specifications:
Stainless Steel Cable vs Technora® Rope
Both meet OSHA requirements. The right choice depends on your environment, depth, and handling preference.
Stainless Steel Cable
-
High strength stainless steel — excellent durability under repeated use
-
Corrosion resistant — suited for wet, chemical, or harsh environments
-
Available up to 300′ — deepest lengths in the Personnel Hoists
-
Three permanent wraps on drum ensure low attachment loads
-
Best for: deep shafts, rough handling conditions, maximum depth requirements
Technora® Rope
-
Lighter than equivalent steel cable models — easier handling and carry
-
Non-conductive — safer for electrical hazard environments
-
Chemically resistant synthetic fiber — withstands many industrial chemicals
-
High tensile strength — no compromise on safety vs steel cable
-
Best for: electrical hazard areas, environments where weight matters, chemical exposure
Accessories That Complete the System
BGW3 - SRL & Hoist Bag
Carrying case which fits all hoists and SRLs
MA-PT1 - Hoist Adapter
Adapter for mounting the Personnel Hoist to compatible anchor systems.
MB-PF1 - Quick-Connect Bracket
Quick-connect bracket for mounting hoist to davit and fall arrest post systems.
MB-TL1 - Quick-Connect Bracket
Quick-connect bracket for tripod mounting compatibility.
